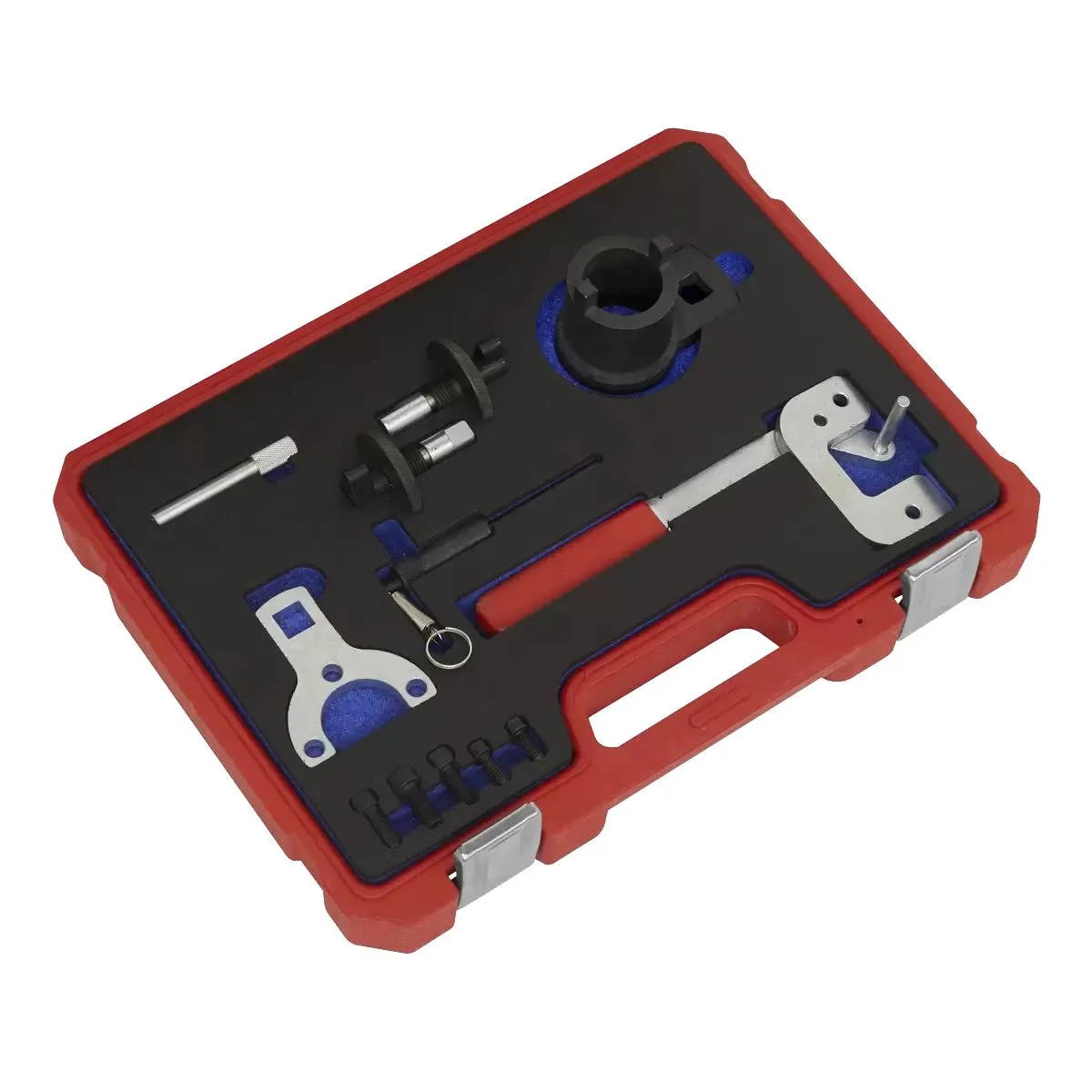

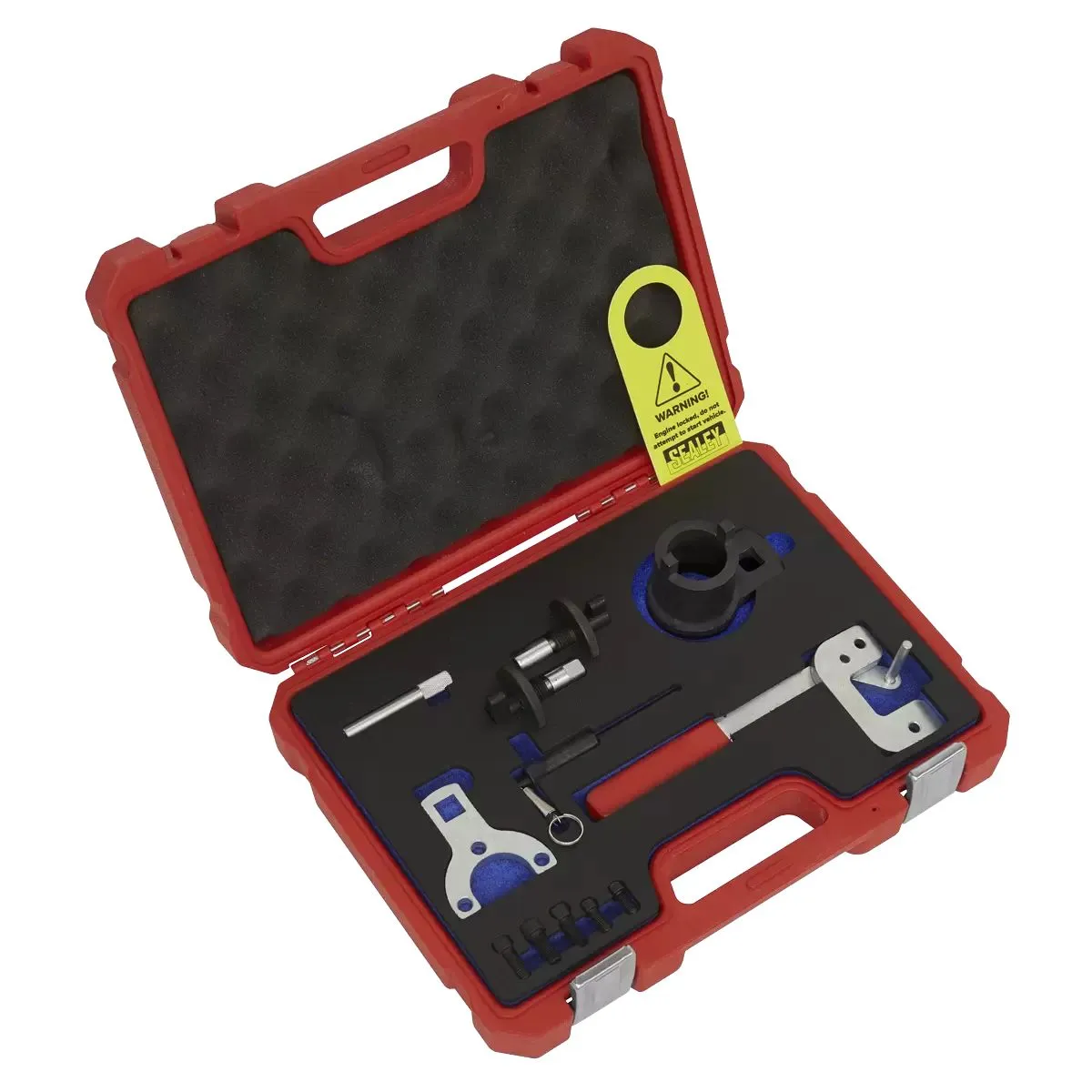

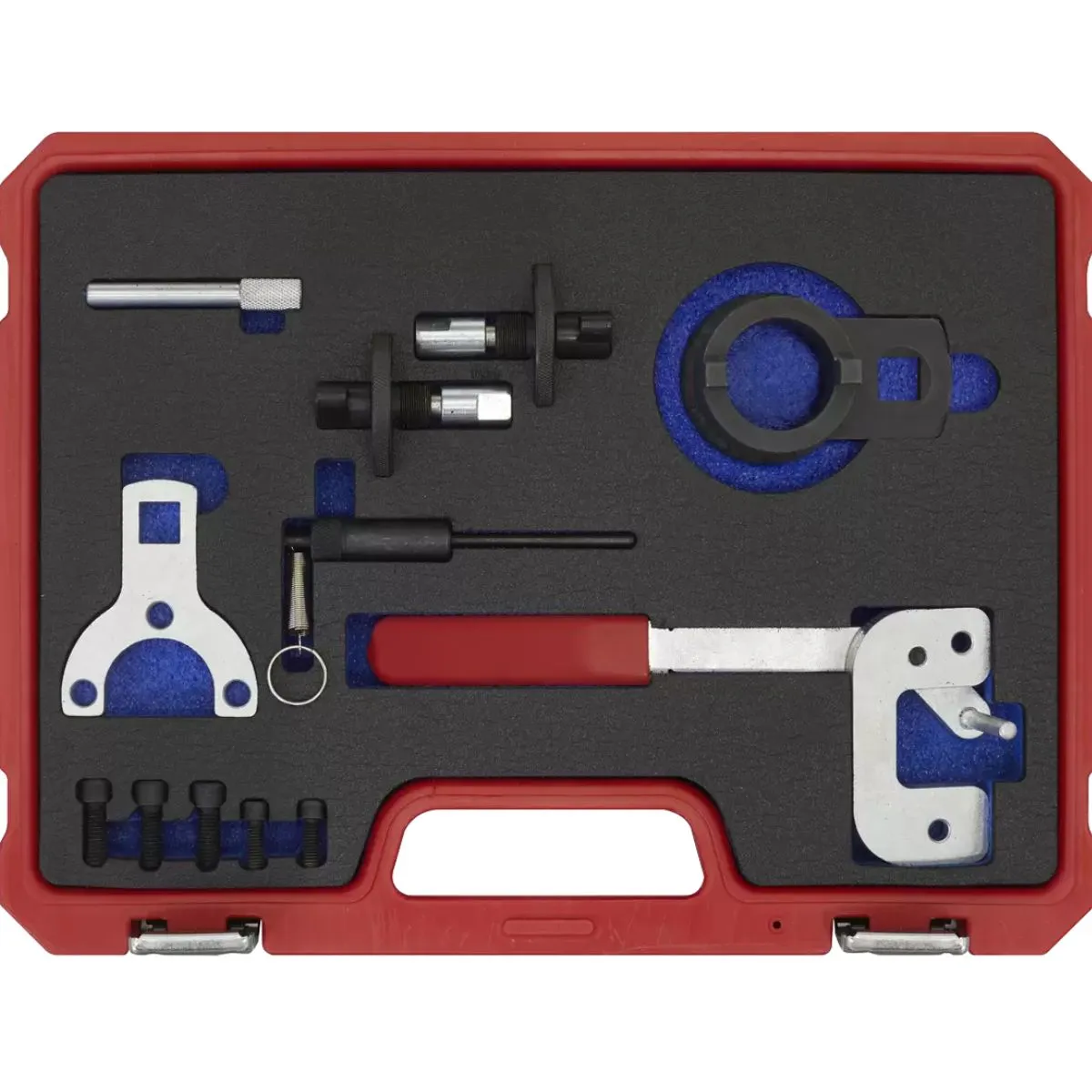

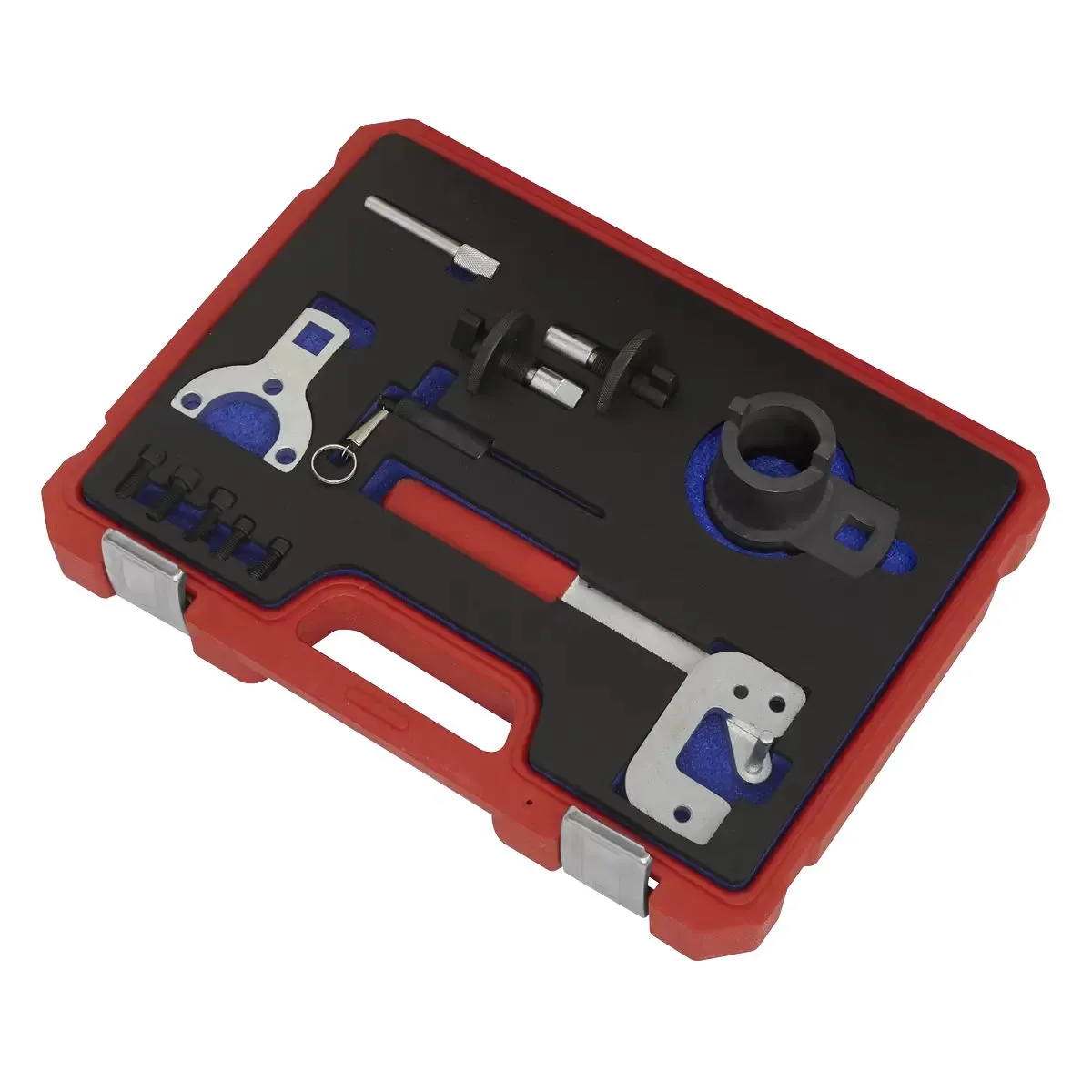

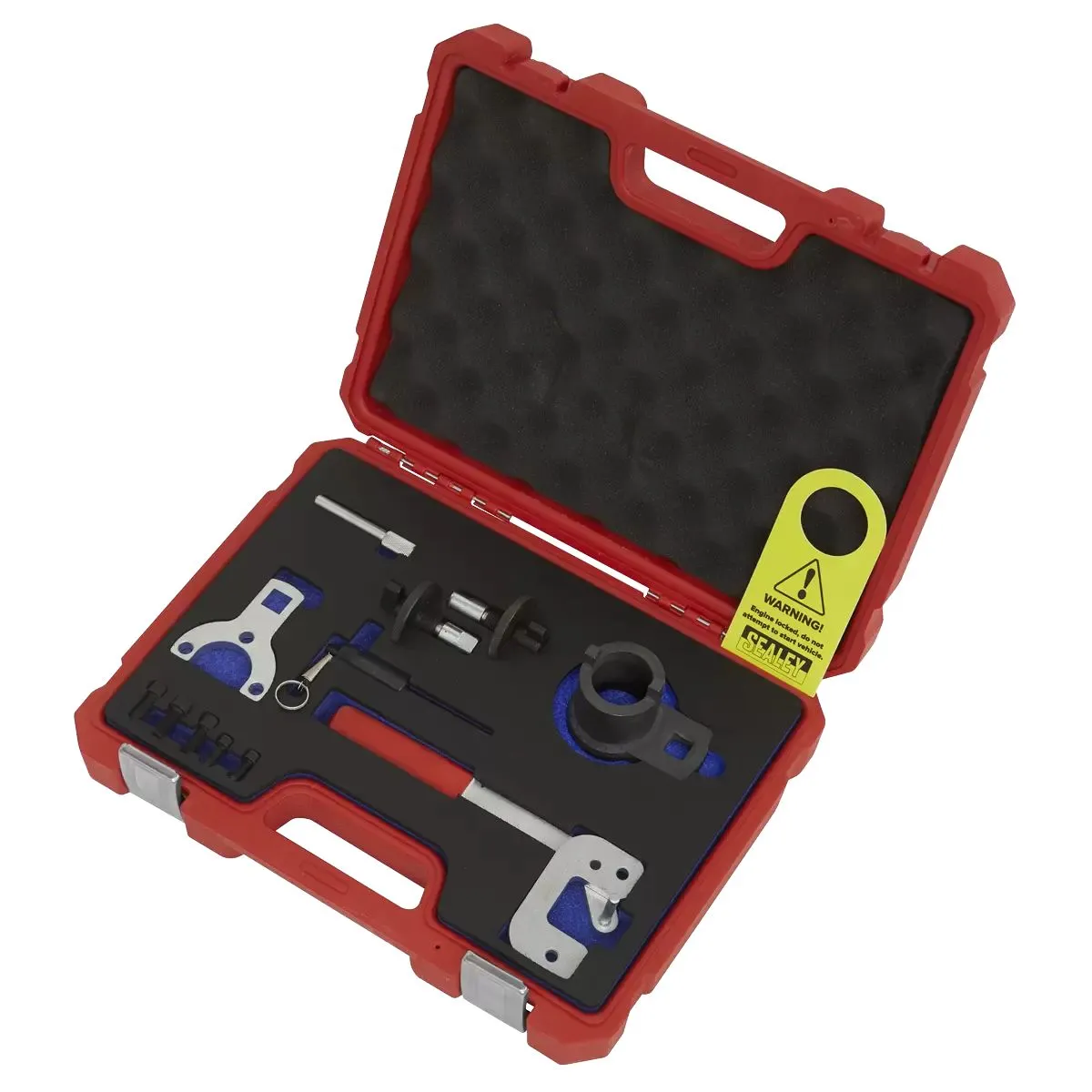

Sealey VSE6191 Diesel Engine Timing Tool Kit for Alfa Romeo. Ford. PSA. Suzuki. GM 1.3D 16v Chain Drive

Suitable for a range of 1.3 16v common rail diesel engines used by a number of vehicle manufacturers. The chain drive connects the crankshaft to the exhaust camshaft which in turn is connected by gears to the inlet camshaft. This overhaul kit is designed to minimize the level of disassembly. so the cylinder head/camshafts can be removed without removing the front timing cover. sprockets and timing chain.

Features:

Suitable for a range of 1.3 16v common rail diesel engines used by a number of vehicle manufacturers.
The chain drive connects the crankshaft to the exhaust camshaft which in turn is connected by gears to the inlet camshaft.
This overhaul kit is designed to minimize the level of disassembly. so the cylinder head/camshafts can be removed without removing the front timing cover. sprockets and timing chain.

Product Specification:

Part no: VSE6191
Barcode: 5054630032271
Brand: Sealey
Applications:
Alfa Romeo: Mito (05-12)
Fiat: 500 (10-12). 500C (10-12). Punto (03-15). Punto Evo (04-15). Grande Punto (03-16). Linea (02-09). Qubo (03-11). Idea (03-10). Doblo (09-14). Doblo Cargo (03-14). Strada Pick-Up (04-12). Fiorino (07-15)
Ford: Ka (09-12)
Lancia: Ypsilon (02-12). Musa (05-10)
Peugeot: Bipper (10-15)
Suzuki: Swift (99-15). Ignis (99-05). Wagon R (99-05). Splash (99-05)
Vauxhall: Agila (99-00). Agila-B (99-02). Corsa-C (99-02). Corsa-D (99-10). Astra-H (00-06). Astra-J (99-04). Tigra-B (00-03). Combo-C (03-16). Meriva-A (03-15). Meriva-B (12-15)
Engine Codes:
1.3D 16v: 199A3.000. 199B1.000. FHZ(F13DTE5). 169A1.000. 188A8.000. 169A5.000. 199A9.000. 188A9.000. 199B2.000. 199A2.000. 223A9.000. 199A3.000. 263A2.000. 169A1.000(FD4). 843A2.000. (FHZ)F13DTE5. D13A. Z13DT. Z13DTJ. A13DTC. A13DTE. A13DTR. Z13DTH. Z13DTR. Z13DTi
Nett Weight: 1.10kg
OEM Tools:
Alfa Romeo/Fiat/Lancia: 1.871.00.900. 1.871.000.200. 1.871.008.600. 1.870.900.400
Citroen: 104-A
Ford: 303-1472. 303-1475. 303-1469
Peugeot: 198-J
Suzuki: 09917-68610. 09916-98610. 09912-38300. 09912-46310. 09917-68221
Vauxhall/Opel: EN-46781. EN-46785. KM-662-C. KM-955

Due to delivery restrictions we are only able to deliver this to UK Mainland addresses. Unfortunately if your delivery address includes the Scottish Highlands. Northern Ireland & The Isle of Wight then your order will get cancelled automatically.

**images for illustrative purposes only please refer to description and specification for full details of product**
