Sealey VS216 Diesel High Pressure Pump Test Kit
Features:
Essential tool for accurately measuring the high pressure fuel circuit of diesel common rail systems.

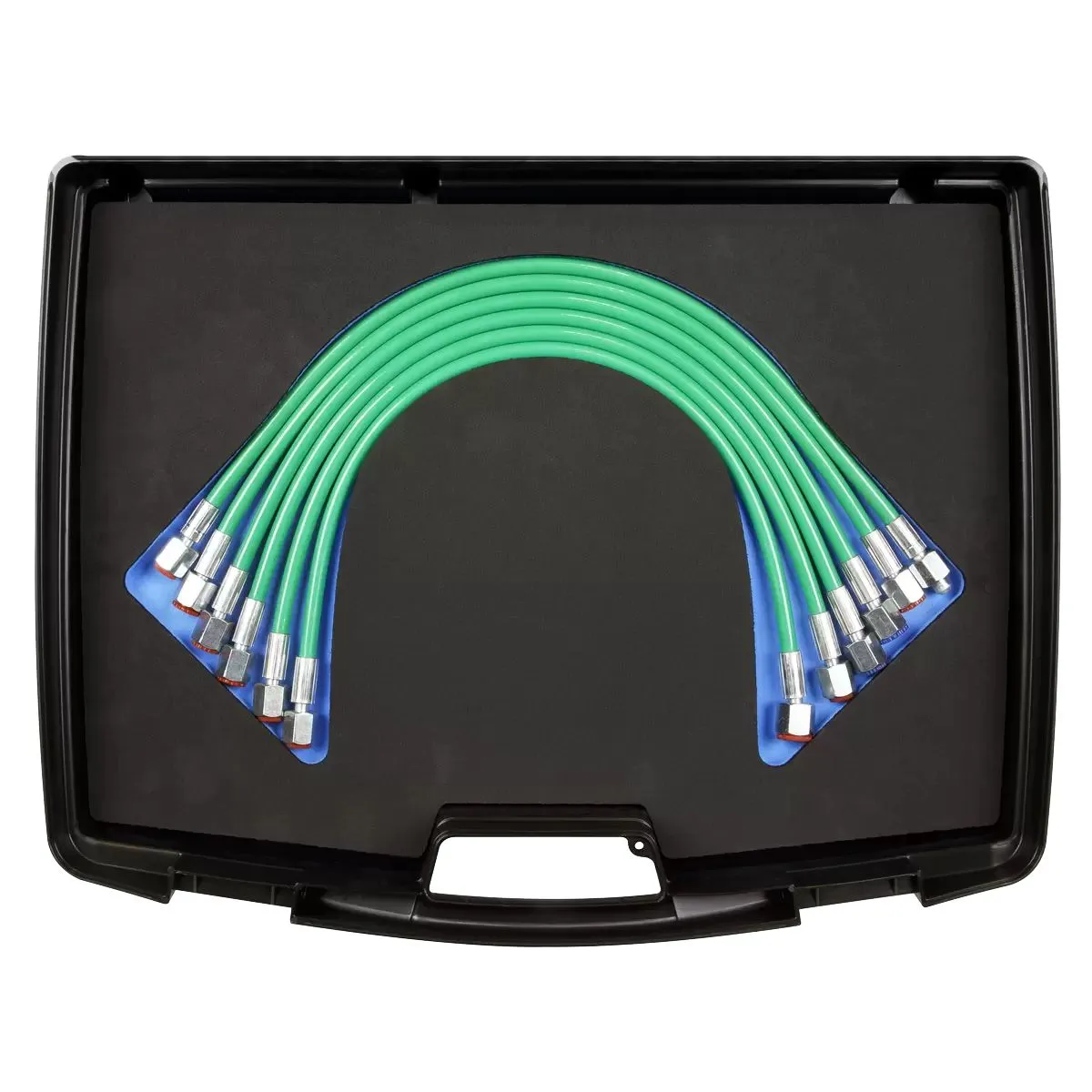

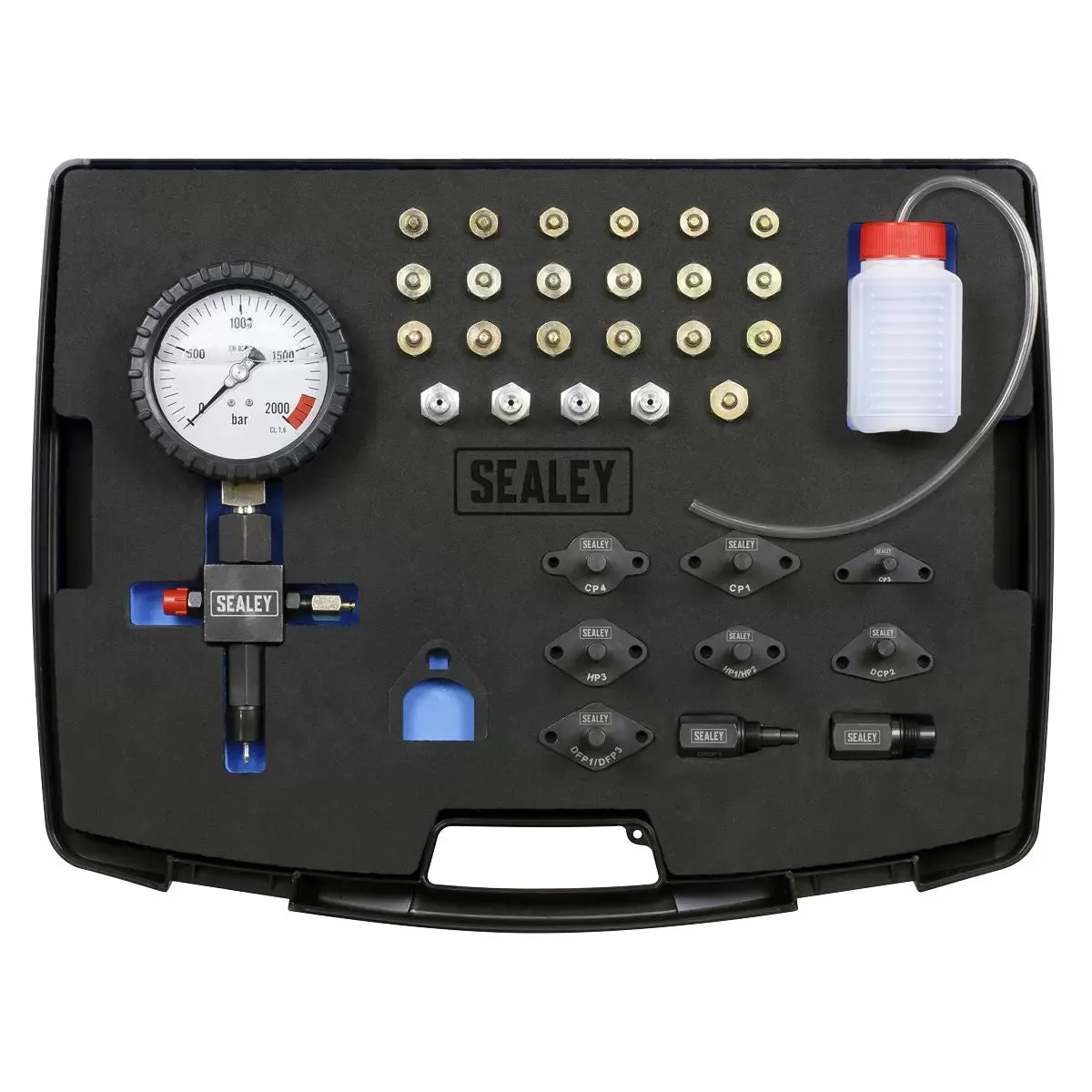

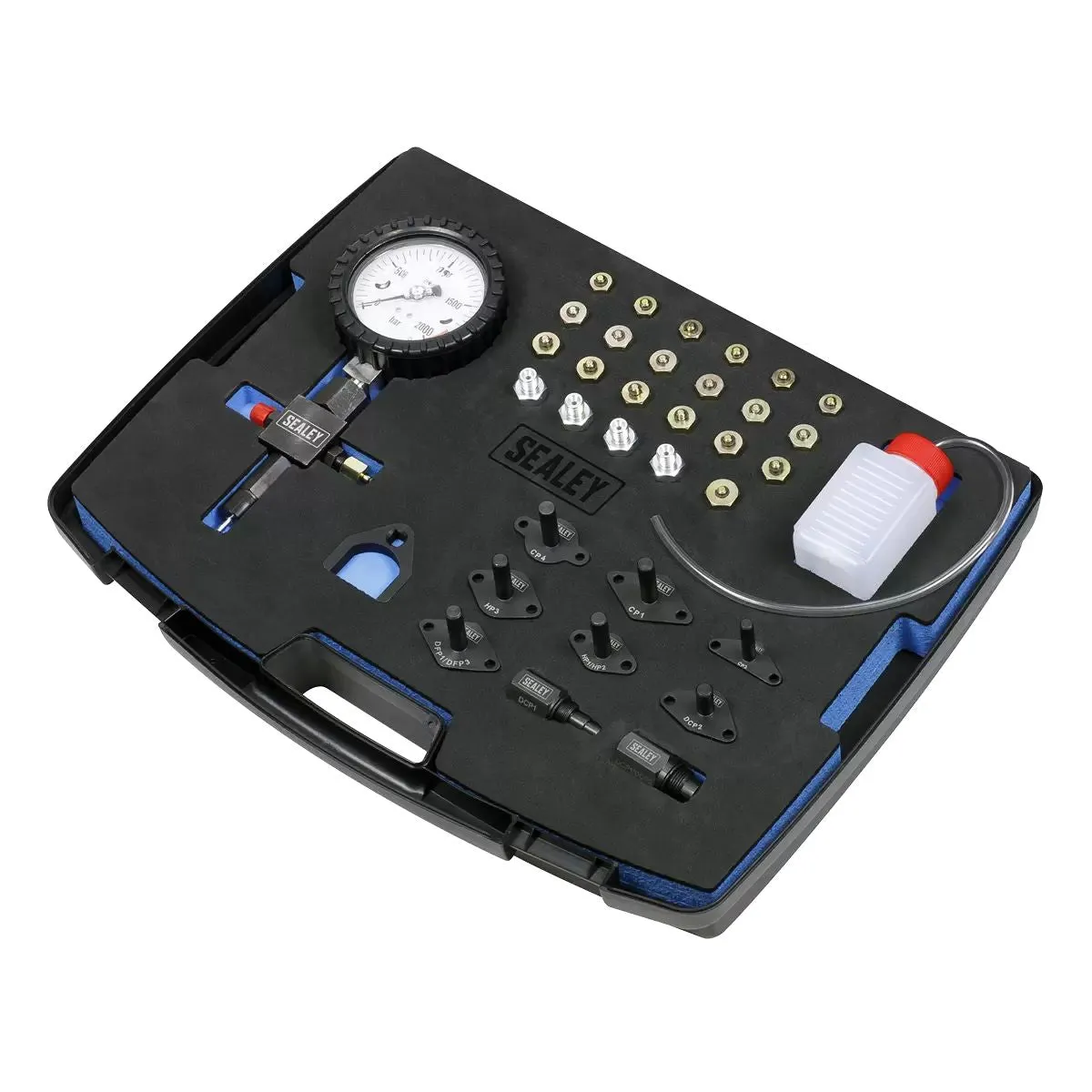

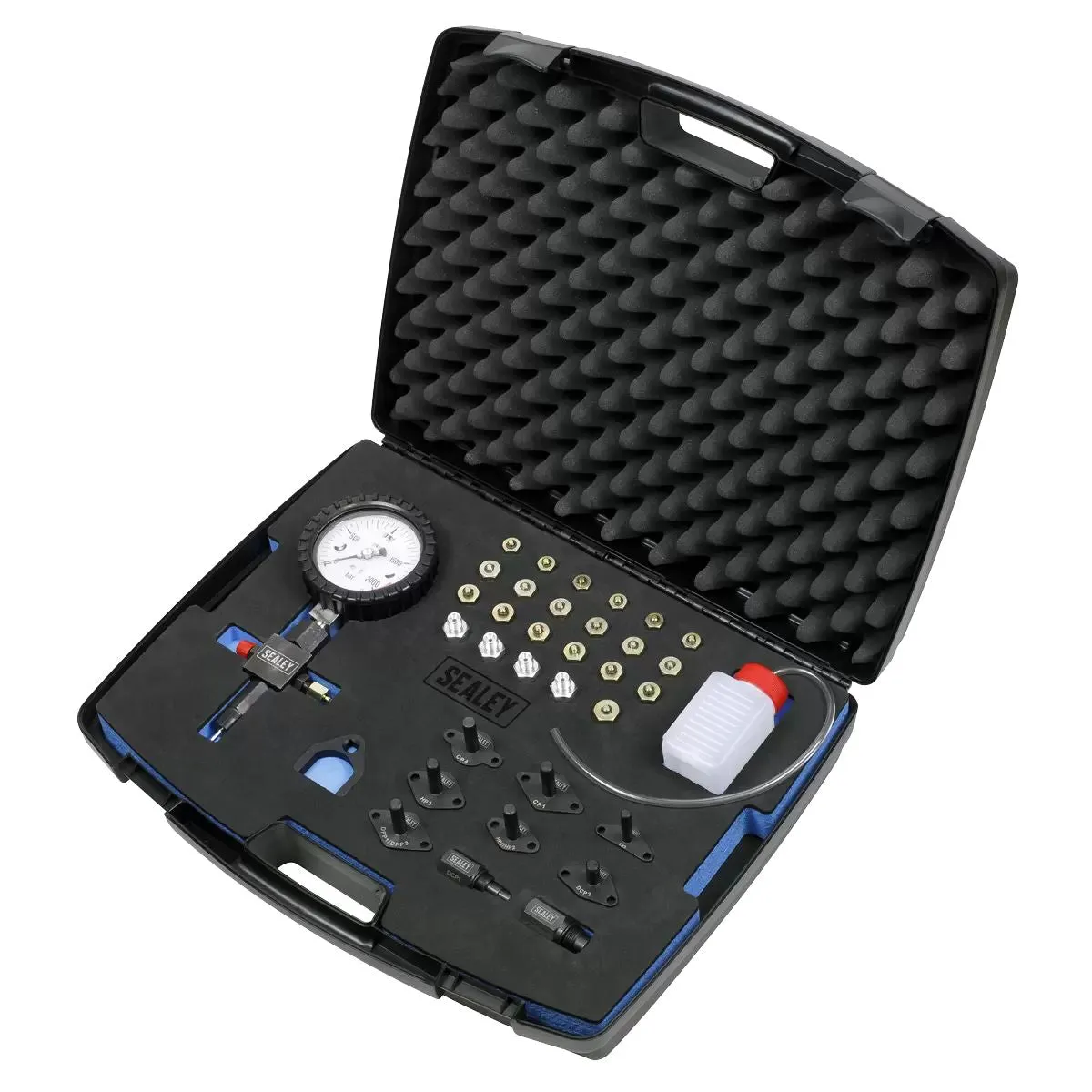

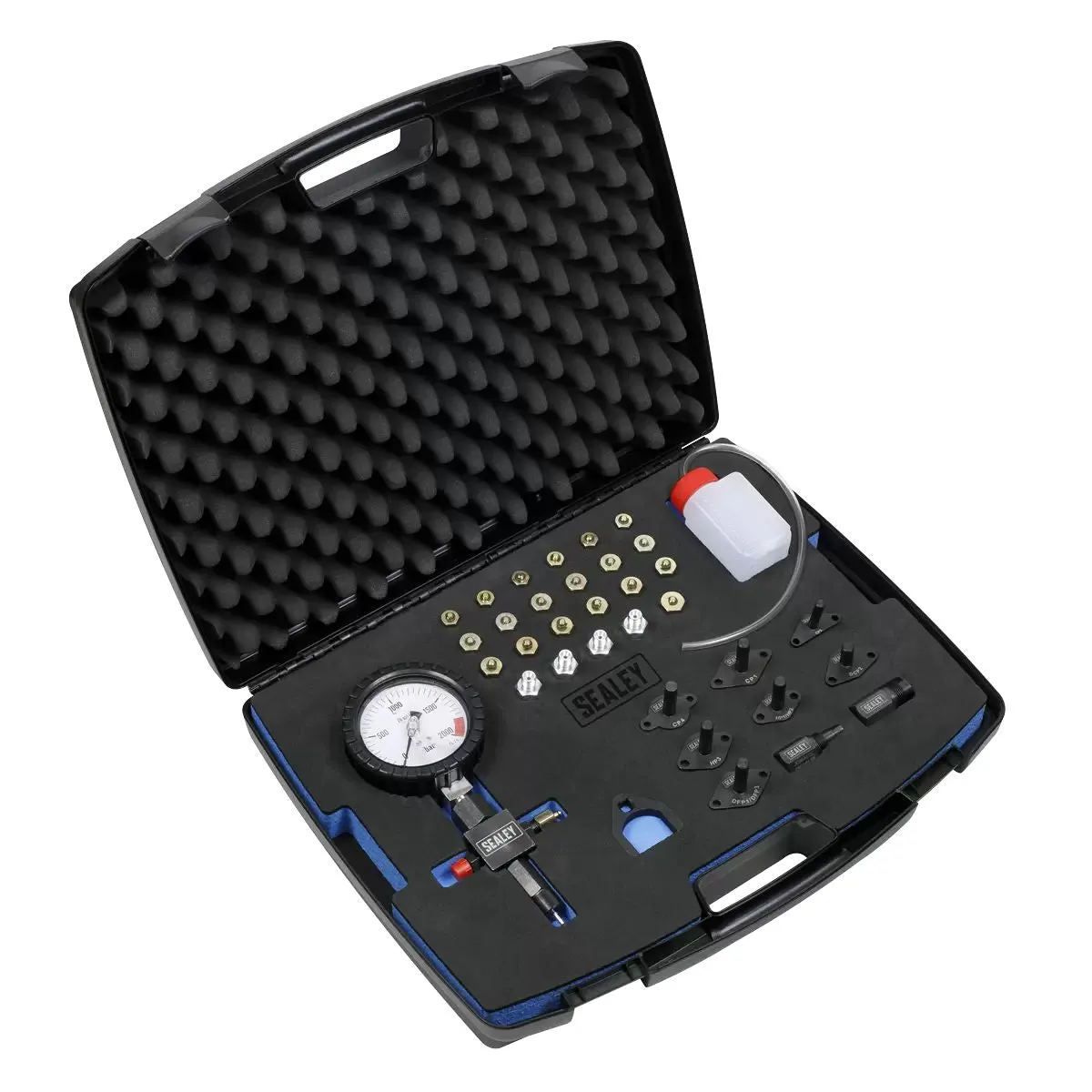

Features 2.000bar gauge. pressure relief valve and high pressure flexible hoses.
The kit also includes a set of dummy pump regulator and injector pipe blanks.
Kit allows for a variety of tests to be conducted:

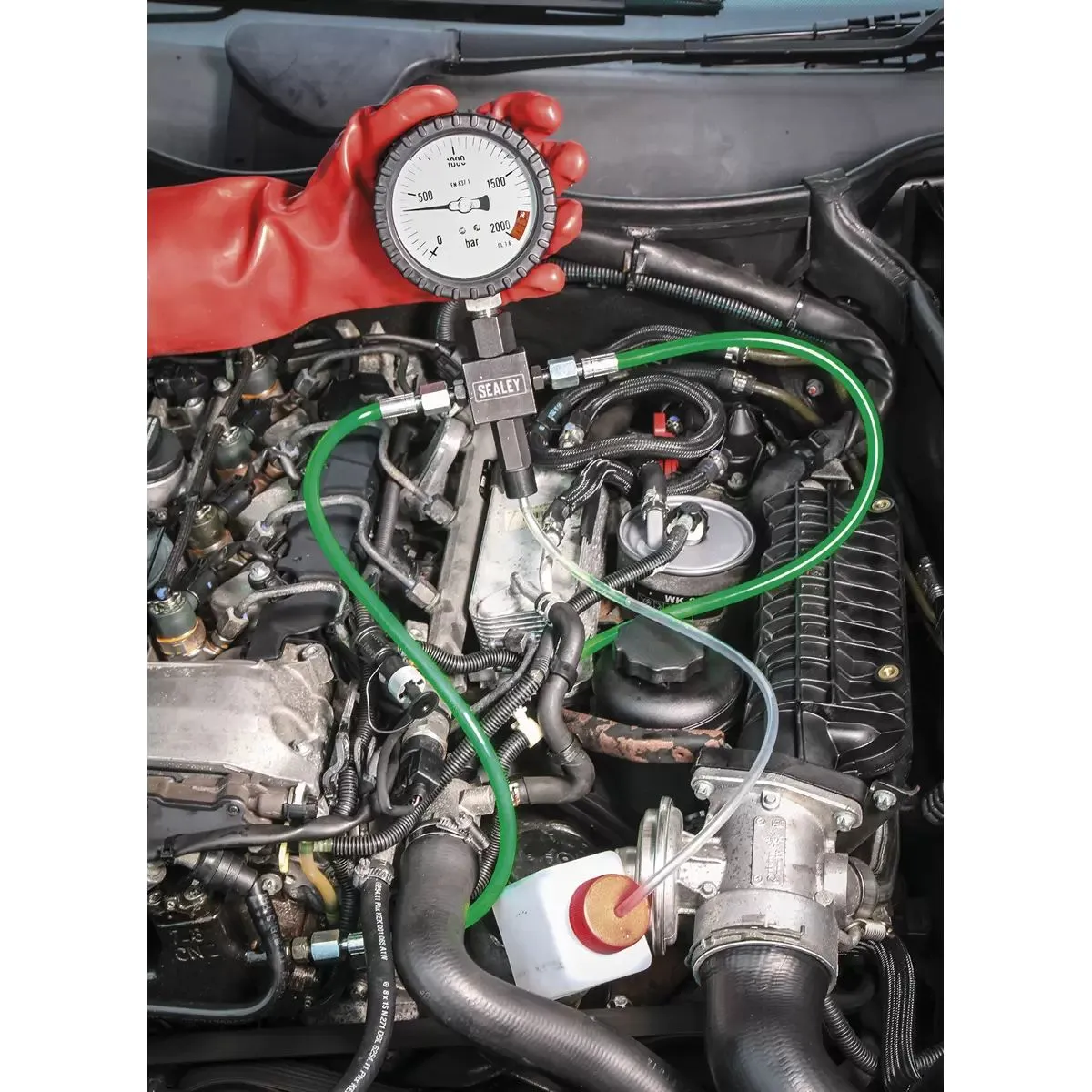

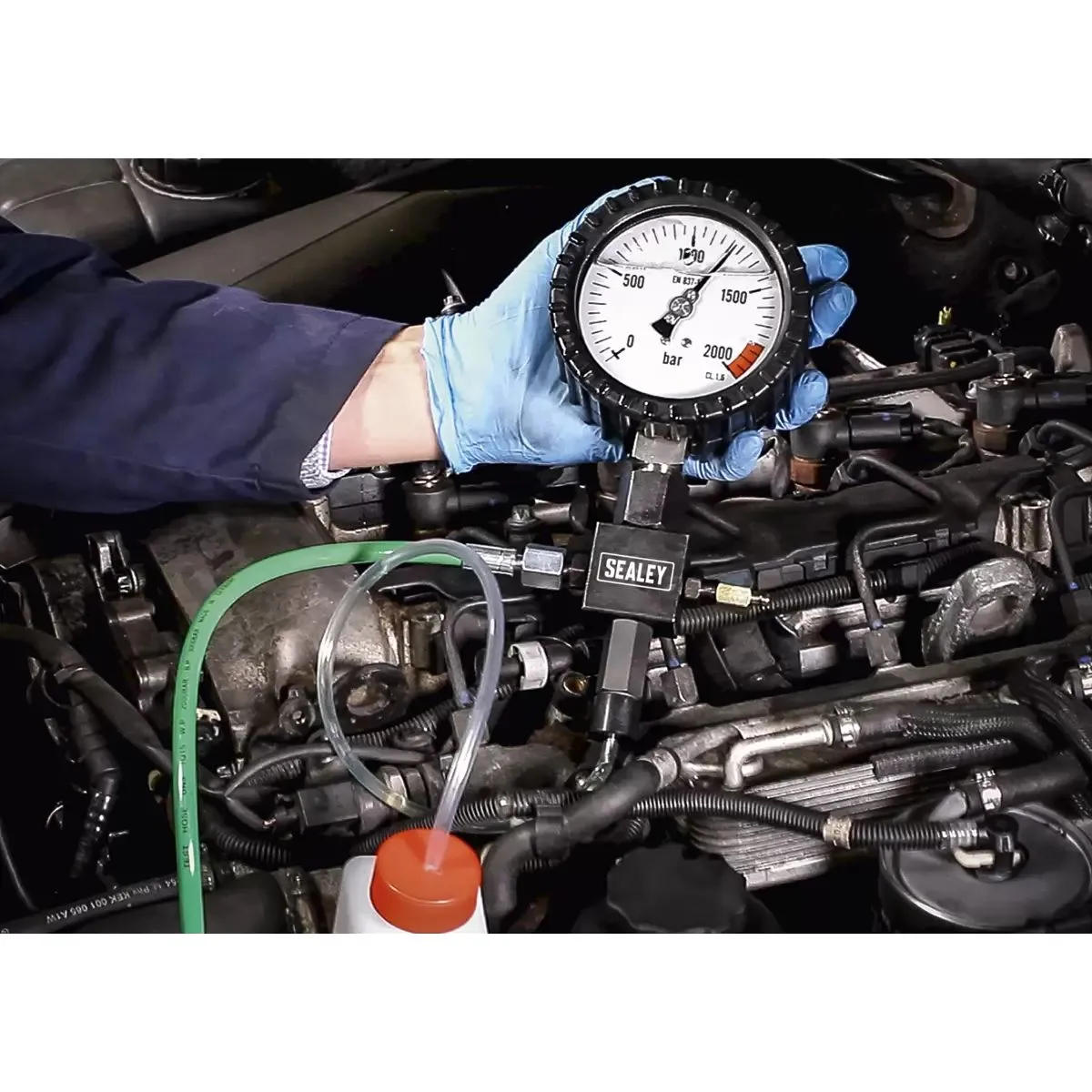

a) Engine cranking/running pressure test
b) Maximum pump pressure test
c) Pump pressure regulator test
d) Injector leakage test.
Specification:
Part No: VS216
Barcode: 5054511978940
Nett Weight: 5.56kg
Gauge Pressure Range: 0-2000bar
Hose Length: 500mm (x6)
Hose Fittings: M12 x 1.5 (x2). M14 x 1.5 (x2). M14 x 1 (x1). M16 x 1 (x1)
Hose Fitting Adaptors: M12 x 1.25 (x2). M14 x 1.25 (x2)
Dummy Regulator Applications: Bosch CP1. Bosch CP3. Bosch CP4. Delphi DFP1/DFP3. Denso HP1/HP2. Denso HP3. Siemens DCP1. Siemens DCP2
Injector Pipe Blanks: M12 x 1.5 (x6). M14 x 1.5 (x6). M14 x 1 (x6)
Pump Outlet Blank: M12 x 1 (x1)
Barcode: 5054511978940
Nett Weight: 5.56kg
Gauge Pressure Range: 0-2000bar
Hose Length: 500mm (x6)
Hose Fittings: M12 x 1.5 (x2). M14 x 1.5 (x2). M14 x 1 (x1). M16 x 1 (x1)
Hose Fitting Adaptors: M12 x 1.25 (x2). M14 x 1.25 (x2)
Dummy Regulator Applications: Bosch CP1. Bosch CP3. Bosch CP4. Delphi DFP1/DFP3. Denso HP1/HP2. Denso HP3. Siemens DCP1. Siemens DCP2
Injector Pipe Blanks: M12 x 1.5 (x6). M14 x 1.5 (x6). M14 x 1 (x6)
Pump Outlet Blank: M12 x 1 (x1)
