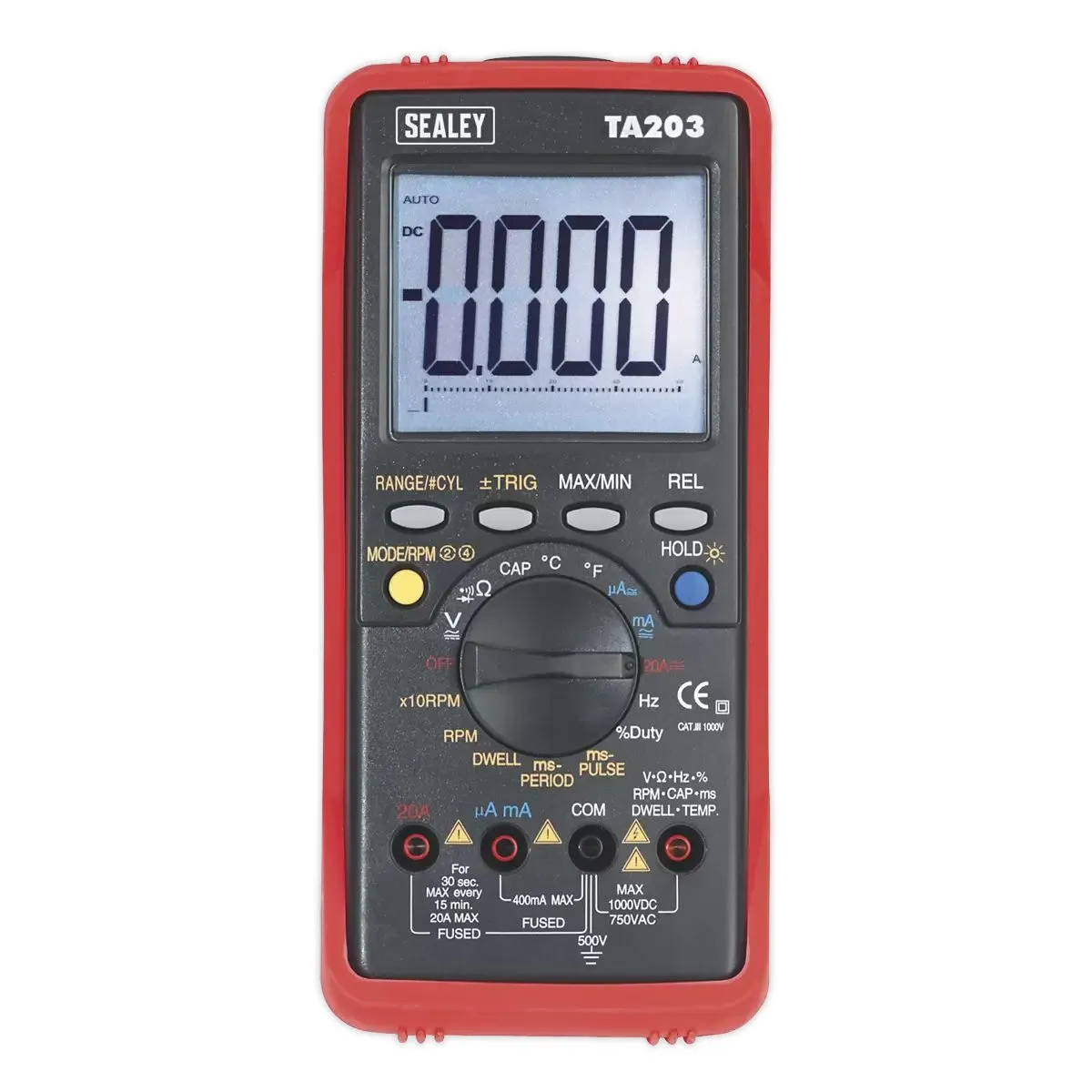

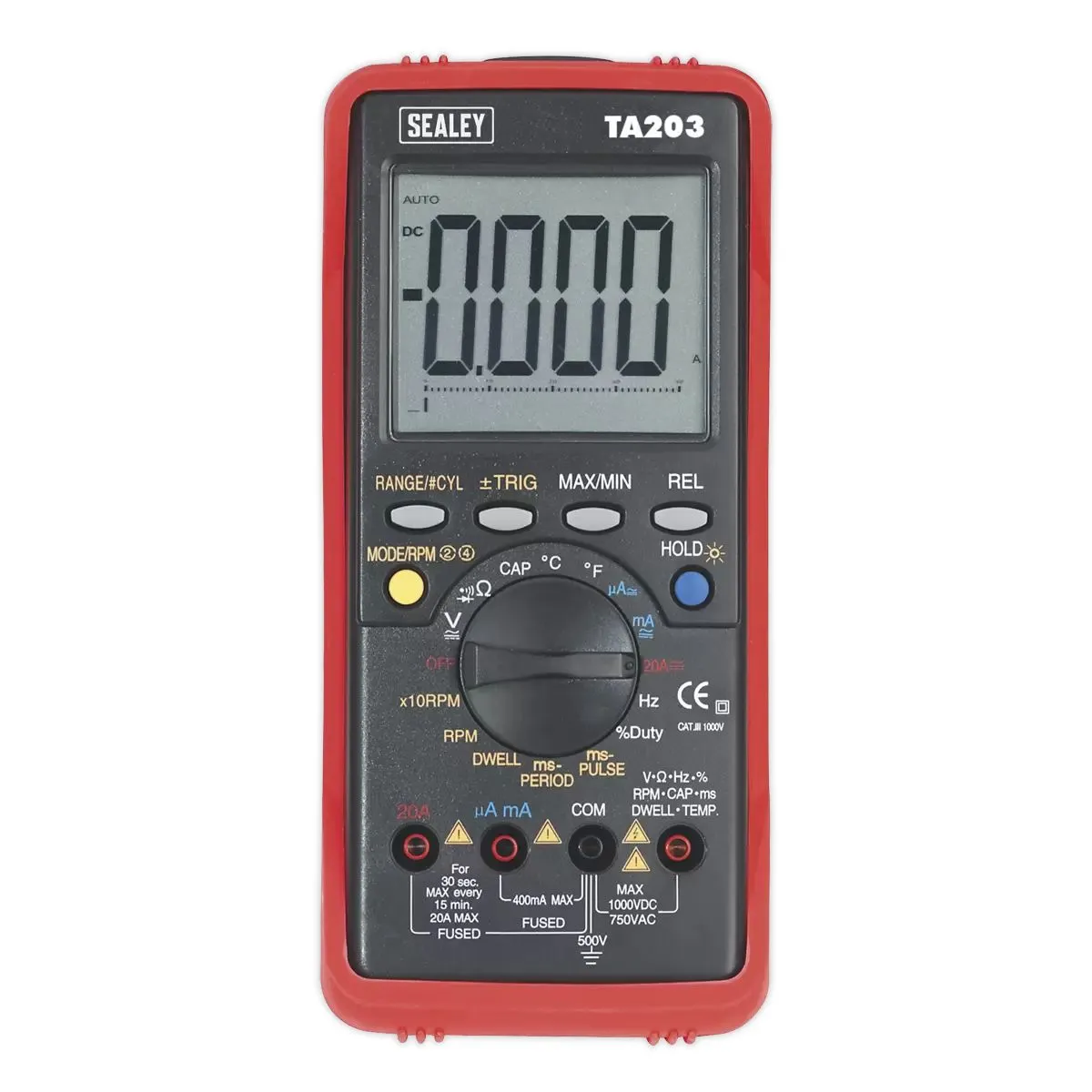

Sealey TA203 Automotive Digital Multimeter 15 Function Bar Graph/PC Link
Features:
Extra-large. high-contrast LCD display with 36mm high digital read-out. bar graph and back light.
Durable case with probe storage and integral stand. suitable for the toughest workshop conditions.
Features millisecond pulse-width function for accurate measurement of fuel injection systems.
Includes auto-ranging. data-hold and auto-power-off.
Bar-graph is essential for the correct testing of lambda sensors.
Suitable for AC and DC circuits.

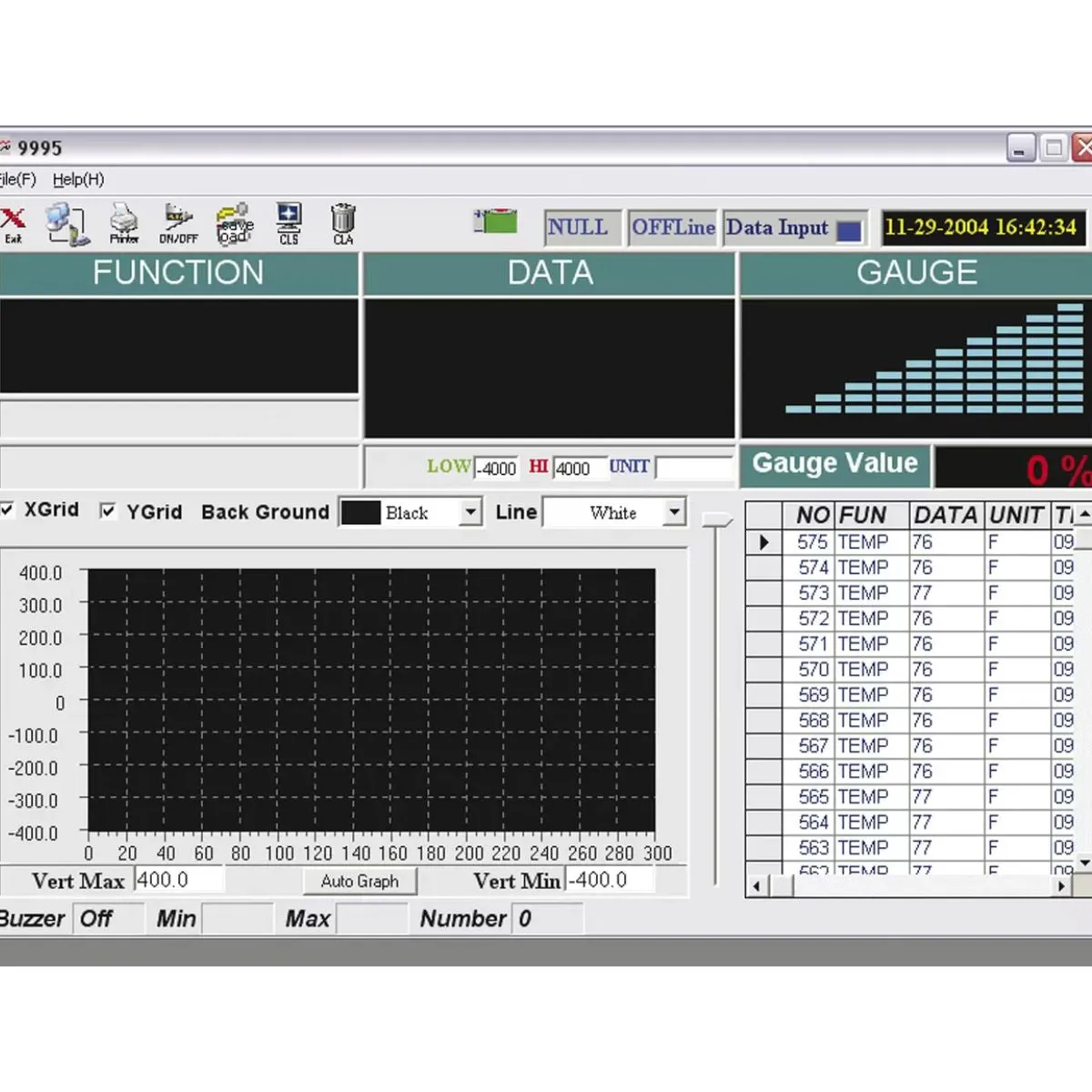

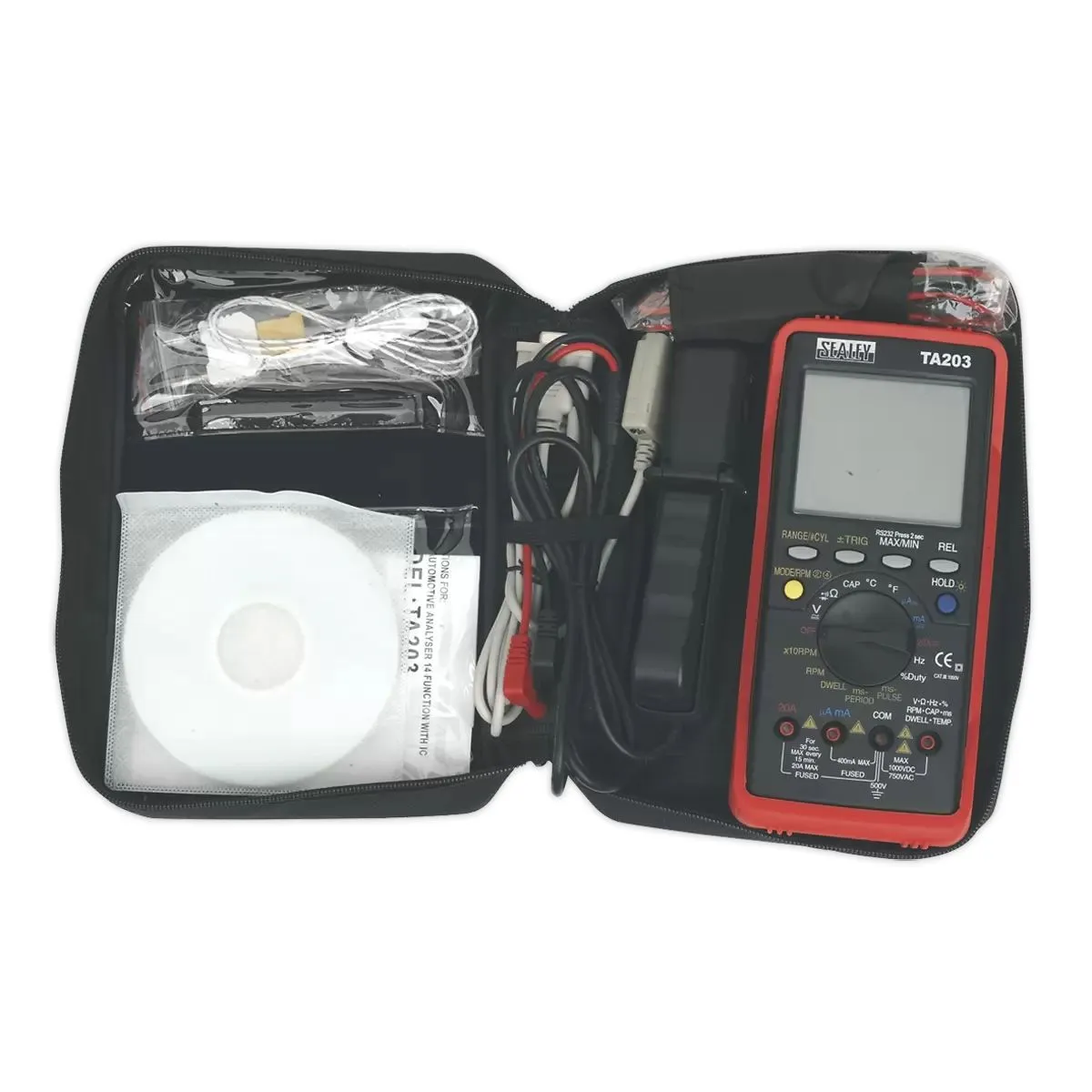

Supplied with inductive coupler (IC) with adjustable sensitivity. for fast reading of engine rpm. test leads (probe and clip) and thermocouple plus USB interface cable and Windows ME/XP/Vista software for downloading data to PC.
Specification:
Barcode: 5024209700399
Nett Weight: 605g
Tach (rpm): 4-Stroke; 600-4000 (x1)rpm. 600-12000 (x10)rpm. 2-Stroke & DIS; 300-4000 (x1)rpm. 300-6000 (x10)rpm
Dwell: 1Cyl 0-360. 2Cyl 0-180. 3Cyl 0-120. 4Cyl 0-90. 5Cyl 0-72. 6Cyl 0-60. 8Cyl 0-45. 10Cyl 0-36. 12Cyl 0-30
AC Voltage: 400mV. 4V. 40V. 400V. 750V (Auto-Ranging. except 400mV)
DC Voltage: 400mV. 4V. 40V. 400V. 1000V (Auto-Ranging)
AC Current: 400A. 4000A. 40mA. 400mA. 4A. 20A (Auto-Ranging for A & mA)
DC Current: 400A. 4000A. 40mA. 400mA. 4A. 20A (Auto-Ranging for A & mA)
Capacitance: 40nF. 400nF. 4F. 40F. 100F (Auto-Ranging)
Frequency: 5Hz. 50Hz. 500Hz. 5kHz. 30kHz (Auto-Ranging)
Duty Cycle: 0.1-99.9%
Period: 2-20ms
Pulse Width: 2-10ms
Resistance: 400. 4k. 40k. 400k. 4M. 40M (Auto-Ranging)
Continuity: <150
Temperature: -20 to 760C/-4 to 1400F
IR Temperature: No
Diode Check: Yes (Typical Test Current 0.3mA)
Transistor Test: No
Back Light: Yes
Bar Graph Display: Yes
Display Hold: Yes
Auto-Ranging: Yes
Inductive Coupler: Yes
PC Interface: Yes
Digits Height:36mm
Auto Power Off: Yes
Low Battery Indicator: Yes
Batteries (supplied): 9V (PP3)
Hi-Impact Case: Yes
Size (L x W x D): 215 x 100 x 60mm
Weight: 605g
**images for illustrative purposes only please refer to description and specification for full details of product**
