• Lifts 3000kg at 1200mm jib extension
• Heavy duty castors
• Pump access from side
• Ideal for heavy commercial. industrial and workshop use

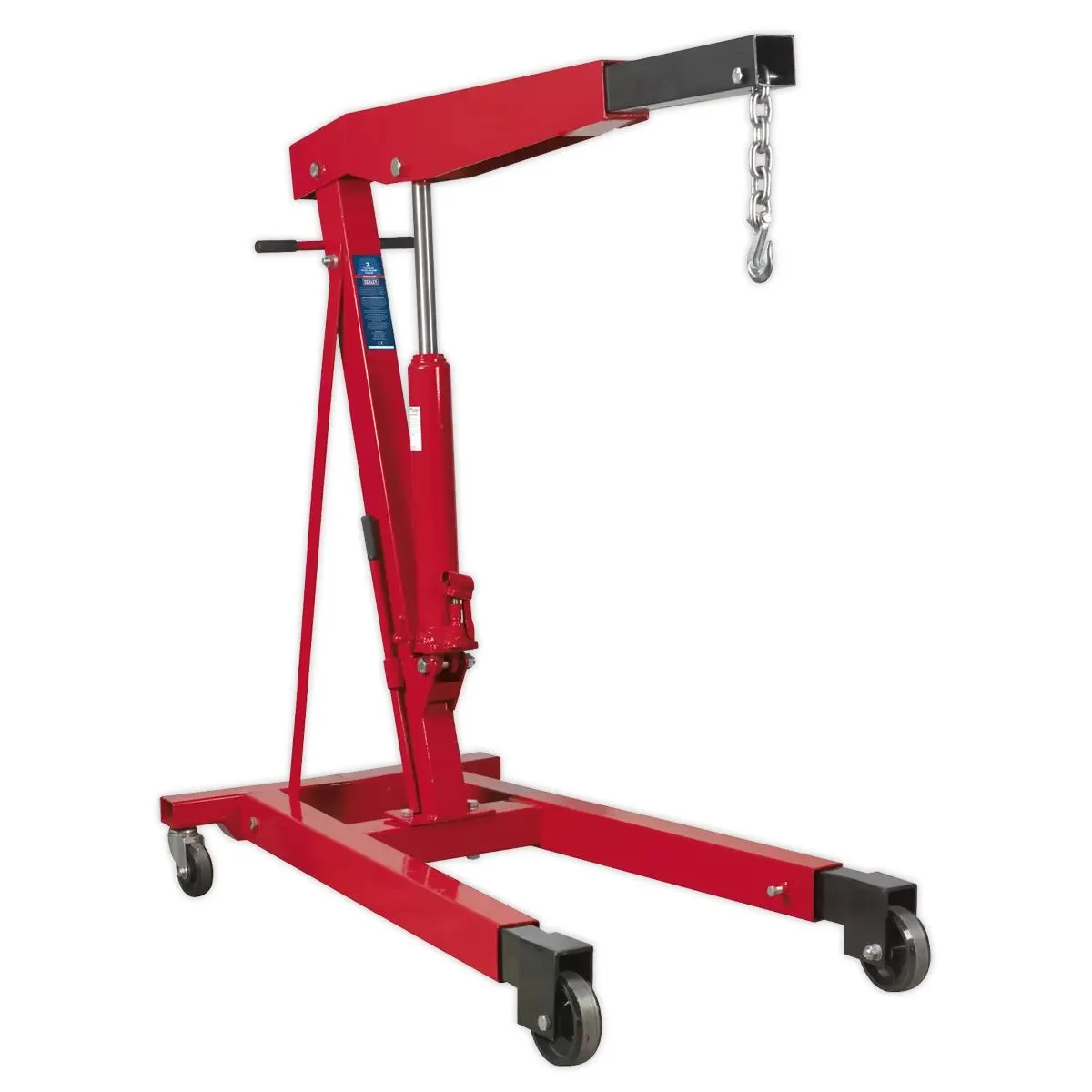

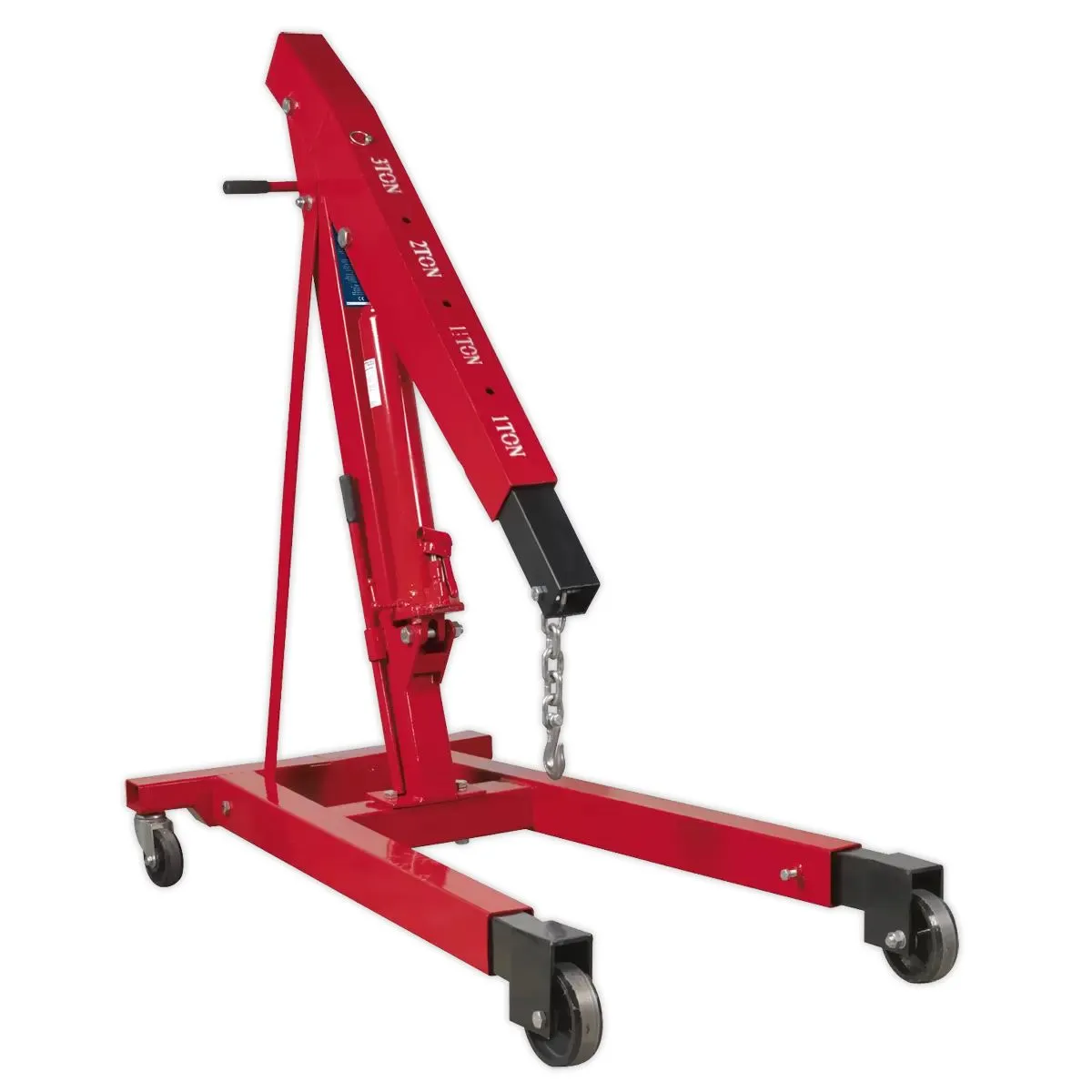

SealeyPH30 3tonne Fixed Frame Engine Crane with Extendable Legs

Features:

Lifts 3000kg at 1200mm jib extension.
Heavy-duty castors.
Perfect for heavy commercial. industrial and workshop use.

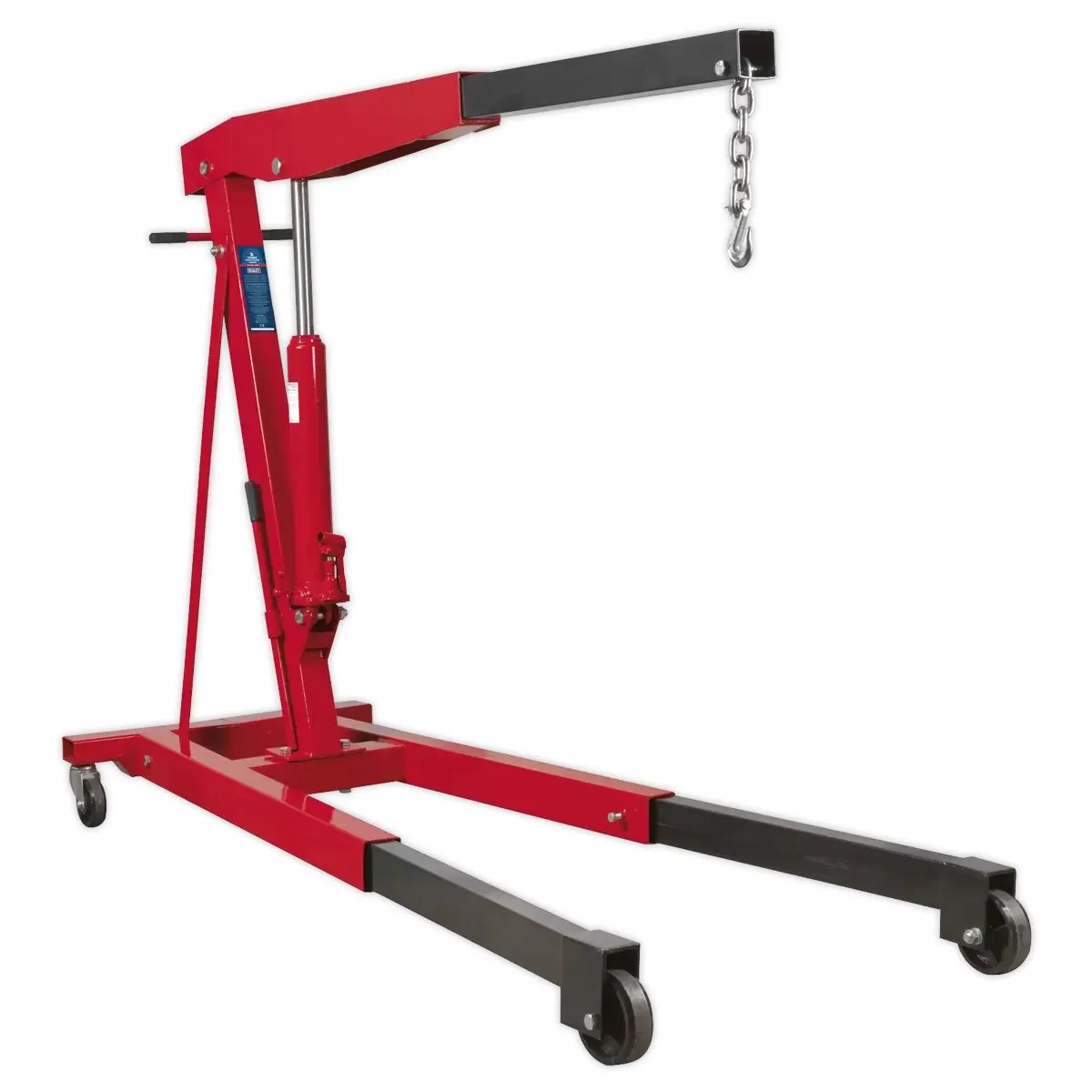

Extendable heavy-duty legs for improved stability. particularly when operating at maximum jib extensions.
Pump access from side for safe handling of heavy loads.
Delivered in knock-down form for reduced freight cost.
Some self-assembly required.

Specification:

Barcode: 5051747698666
Model No.: PH30
Height Jib Down: 1610mm
Height of Frame: 195mm
Length Legs Extended: 1940mm
Length of Jib Position 1: 1200mm
Length of Jib Position 2: 1400mm
Length of Jib Position 3: 1610mm
Length of Jib Position 4: 1820mm
Length: 1940mm
Lifting Capacity in Position 1: 3000kg
Lifting Capacity in Position 2: 2000kg
Lifting Capacity in Position 3: 1500kg
Lifting Capacity in Position 4: 1000kg
Max. Lift Ht at Jib Position 1: 1880mm
Max. Lift Ht at Jib Position 2: 1970mm
Max. Lift Ht at Jib Position 3: 2010mm
Max. Lift Ht at Jib Position 4: 2220mm
Note: Legs Extended
Rear Width: 780mm
Width Front Frame: 855mm
Width Inside Front Frame: 700mm

Due to delivery restrictions we are only able to deliver this to UK Mainland addresses. Unfortunately if your delivery address includes the Scottish Highlands. Northern Ireland & The Isle of Wight then your order will get cancelled automatically.
