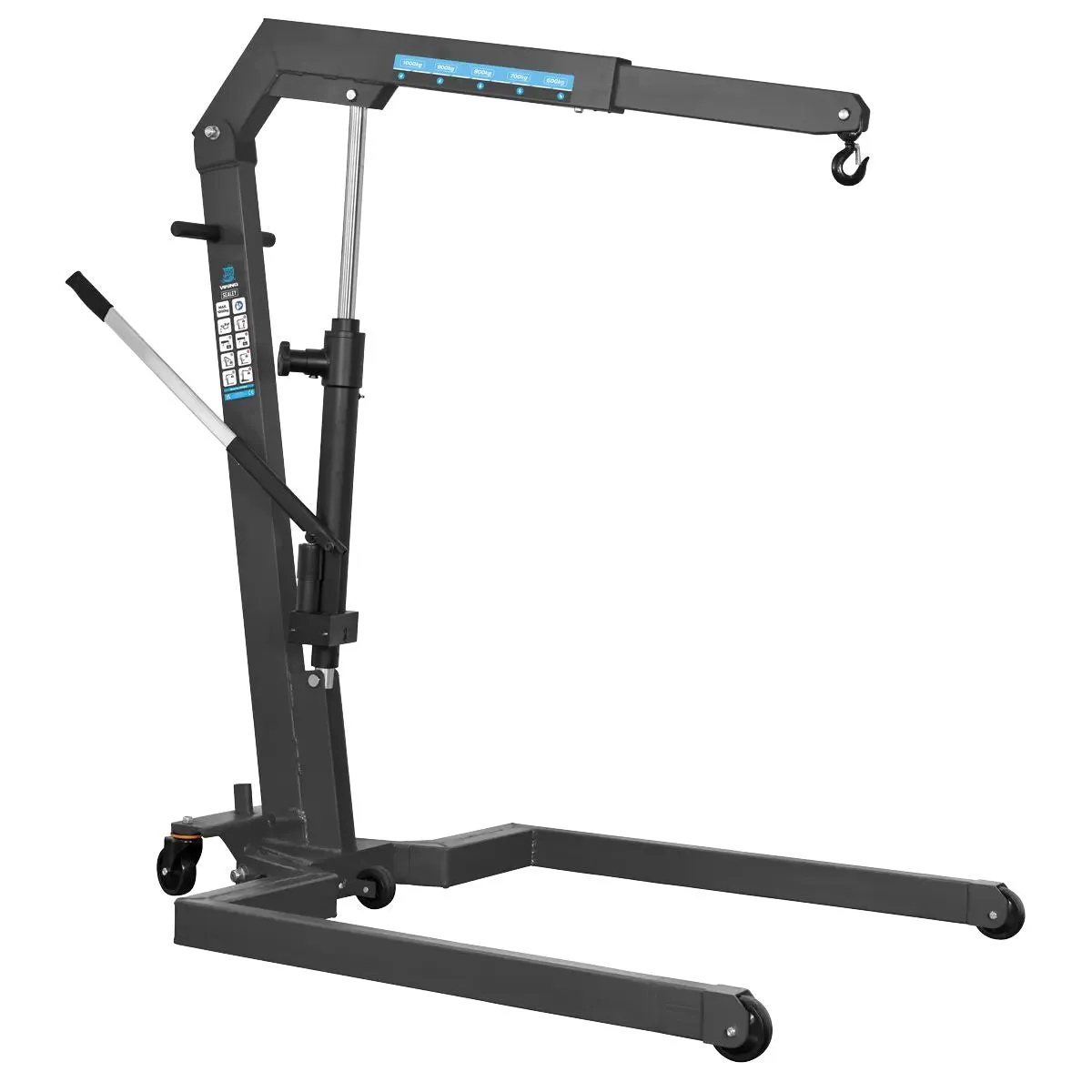

Sealey PFC101S Viking Industrial Engine Crane 1 Tonne

The legs fold away for storage and transportation and extend parallel to fit around various obstructions like pallets. boxes. etc. Hand operated dead man's control to prevent accidental lowering. Manually controlled descent speed. The jib can be extended and locks in five positions between 960-1350mm. The hydraulic unit and handle rotates by 200 aiding use where space is limited. Strong non-marking. nylon and fibreglass wheels front and rear. Rear castor wheels fitted with brakes. An additional wheel is also fitted for ease of movement when folded.

Features:

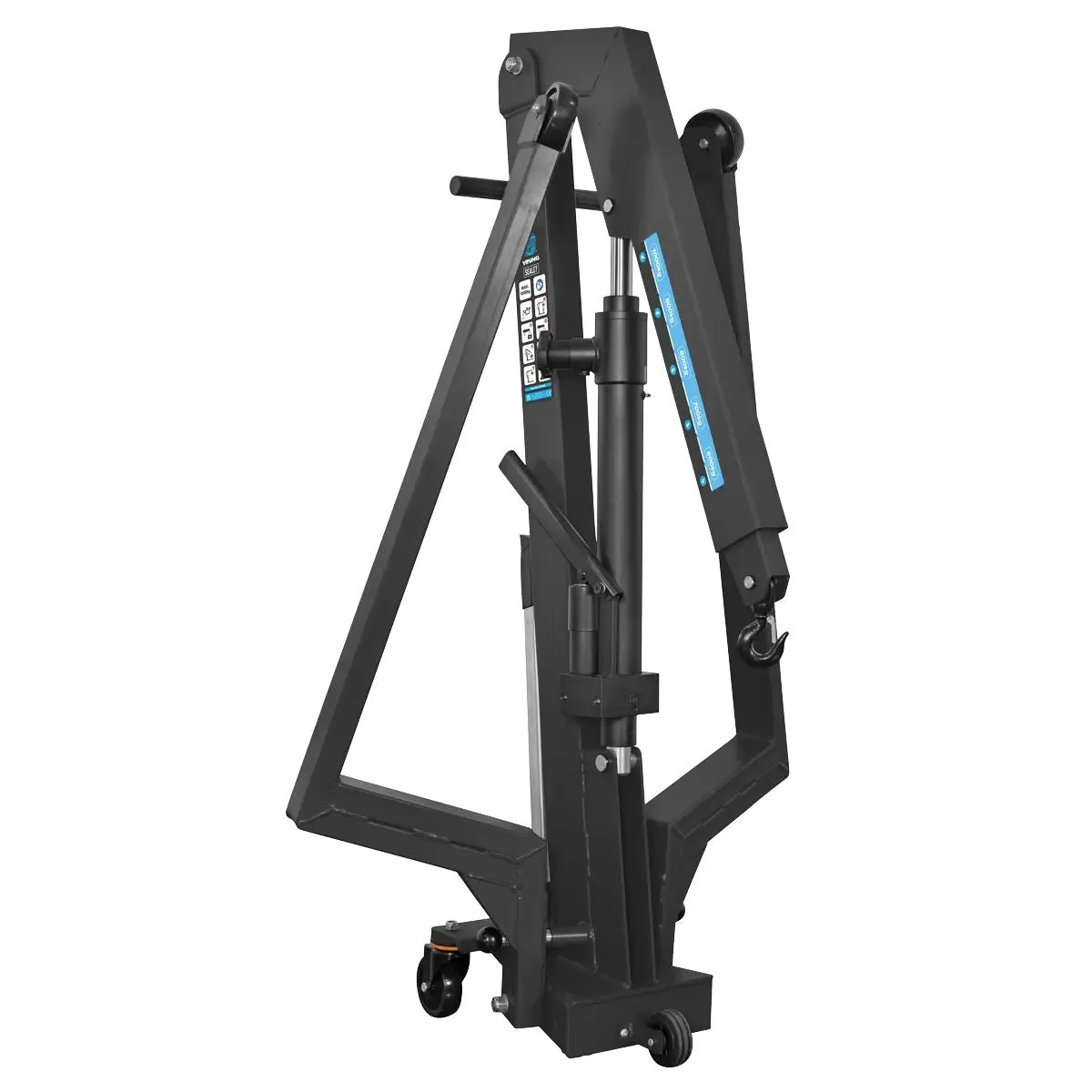

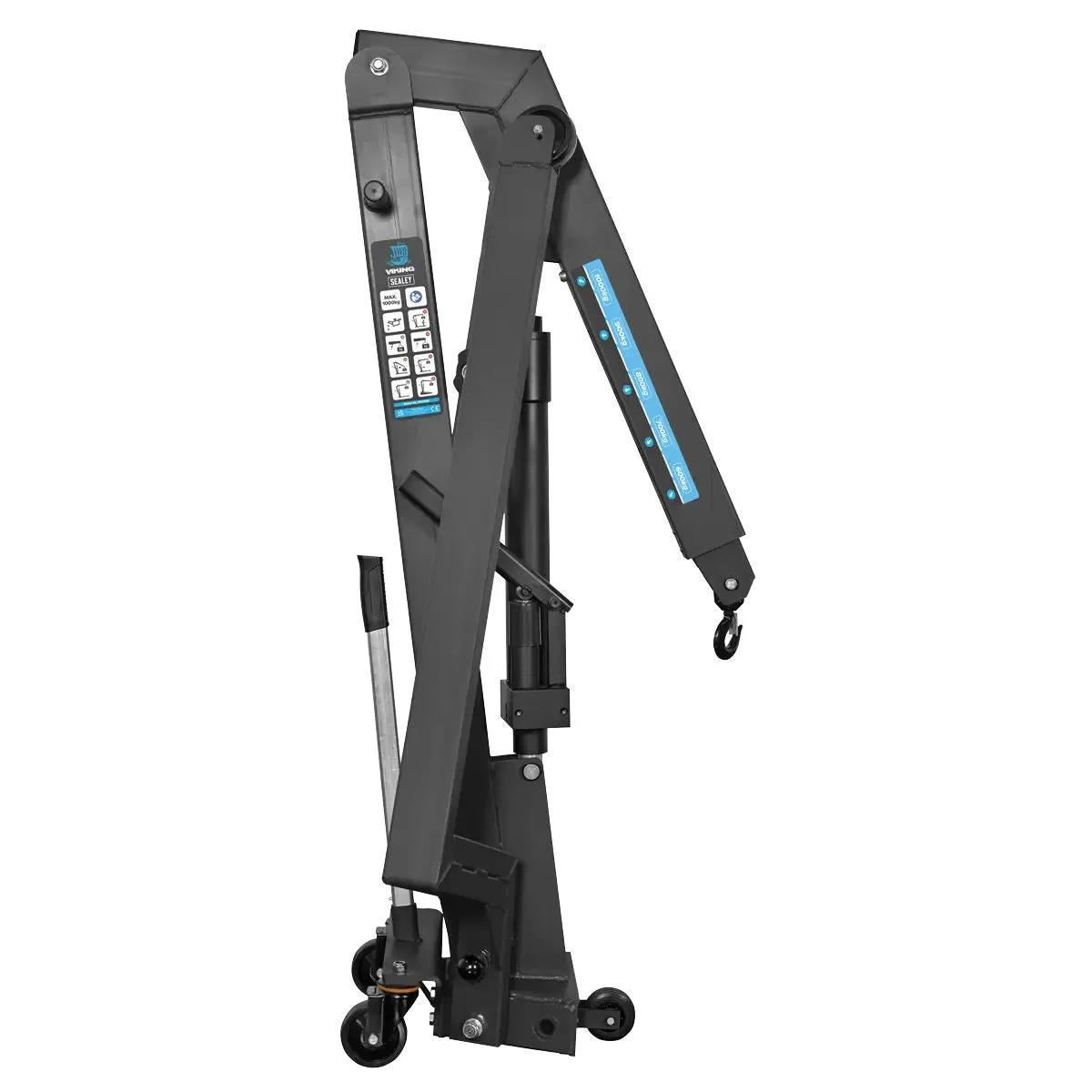

FOLDING PARALLEL LEGS - The legs fold away for storage and transportation and extend parallel to fit around various obstructions like pallets. boxes. etc.
SAFETY RELEASE - Hand operated dead man's control to prevent accidental lowering.
CONTROLLABLE RELEASE - Manually controlled descent speed.

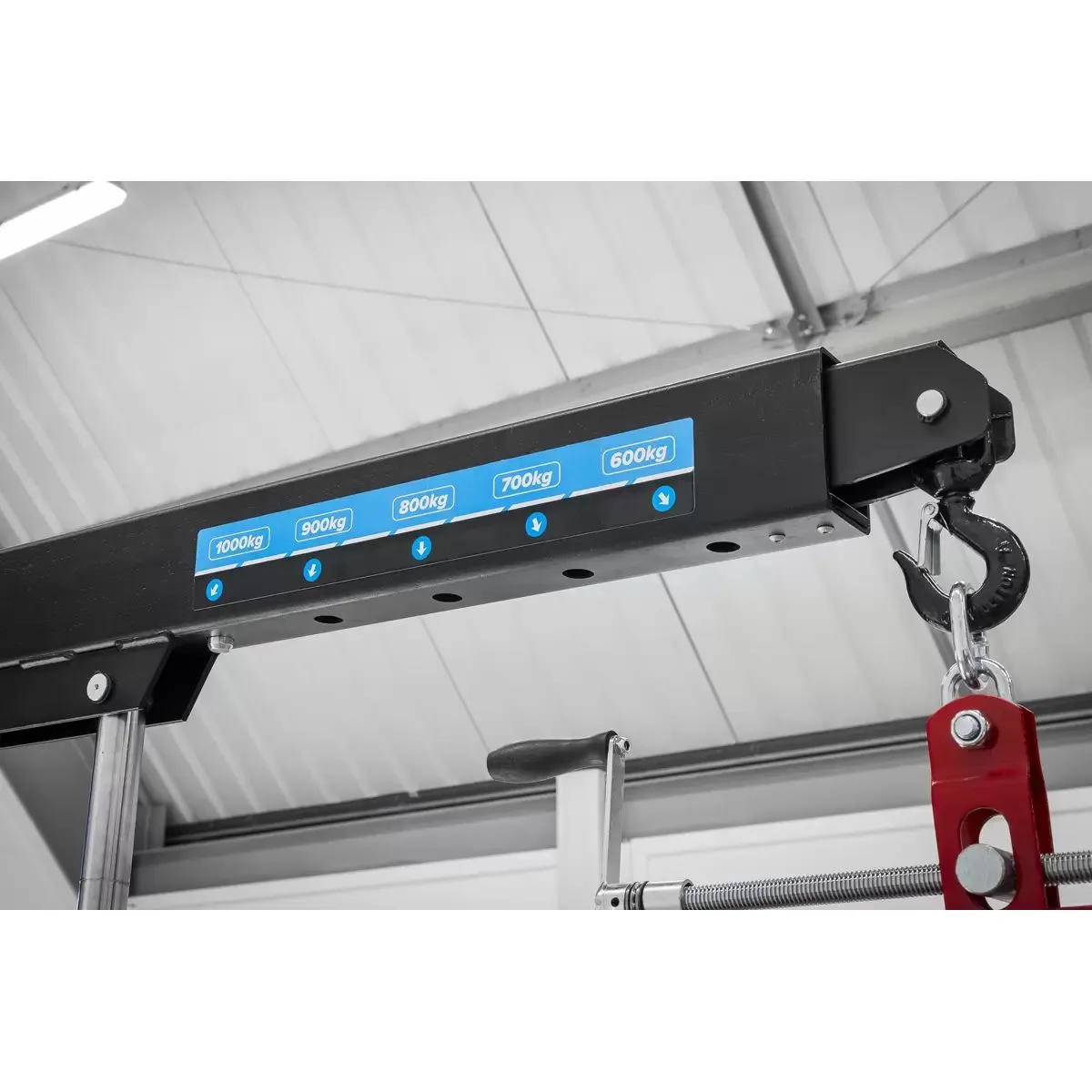

FIVE POSITION JIB - The jib can be extended and locks in five positions between 960-1350mm.

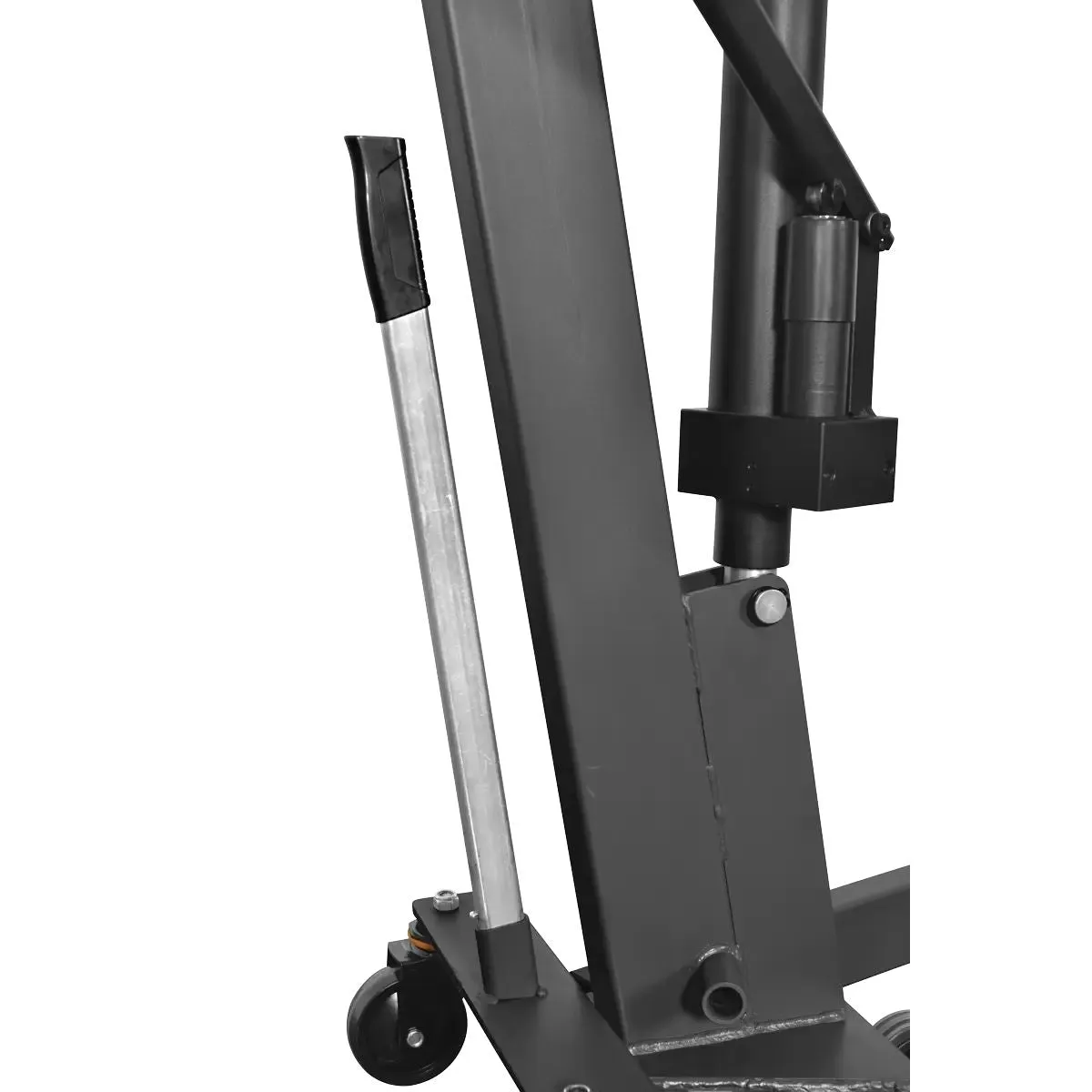

TURNING PUMP HANDLE - The hydraulic unit and handle rotates by 200 aiding use where space is limited.

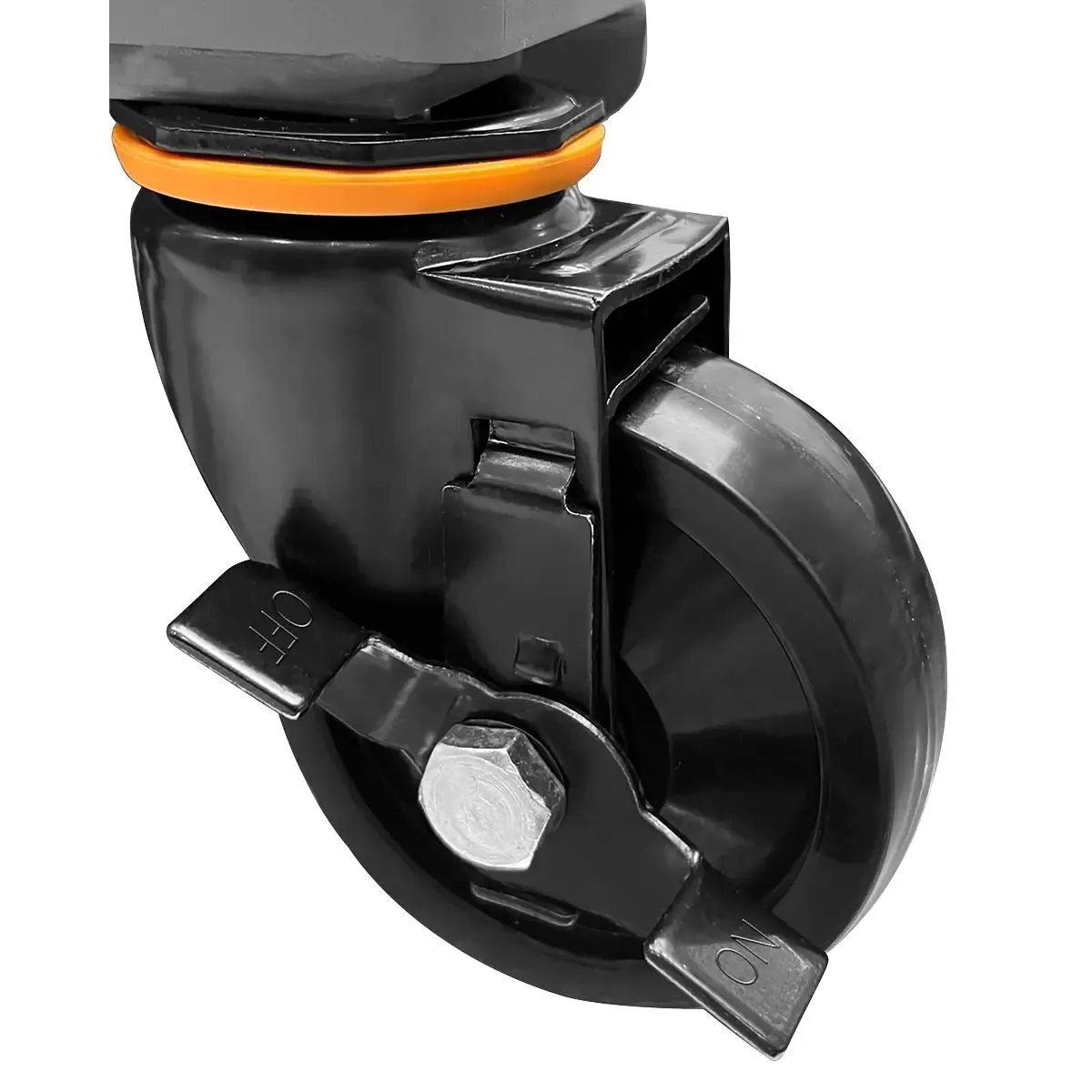

NON FLOOR MARKING WHEELS - Strong non-marking. nylon and fibreglass wheels front and rear. Rear castor wheels fitted with brakes. An additional wheel is also fitted for ease of movement when folded.
This item is heavy. Extra assistance must be provided at the delivery point to help its safe delivery.

Product Specification:

Part no: PFC101S
Barcode: 5054630400810
Height Jib Down: n/a
Height Legs Folded: 1550mm
Height of Frame: 105mm
Length Legs Extended: n/a
Length of Jib Position 1: 960mm
Length of Jib Position 2: 1053mm
Length of Jib Position 3: 1152mm
Length of Jib Position 4: 1250mm
Length of Jib Position 5: 1350mm
Length: 1600mm
Lifting Capacity in Position 1: 1000kg
Lifting Capacity in Position 2: 900kg
Lifting Capacity in Position 3: 800kg
Lifting Capacity in Position 4: 700kg
Lifting Capacity in Position 5: 600kg
Max. Lift Ht at Jib Position 1: 2080mm
Max. Lift Ht at Jib Position 2: 2140mm
Max. Lift Ht at Jib Position 3: 2190mm
Max. Lift Ht at Jib Position 4: 2250mm
Max. Lift Ht at Jib Position 5: 2300mm
Nett Weight: 96kg
Note: n/a
Rear Width: 390mm
Width Front Frame: 1129mm
Width Inside Front Frame: 1025mm

Due to delivery restrictions we are only able to deliver this to UK Mainland addresses. Unfortunately if your delivery address includes the Scottish Highlands. Northern Ireland & The Isle of Wight then your order will get cancelled automatically.

**images for illustrative purposes only please refer to description and specification for full details of product**
