Product Details
  • Impressive design
  • 6.5L fuel tank
  • Offers higher torque
  • Commercial & heavy-duty home use

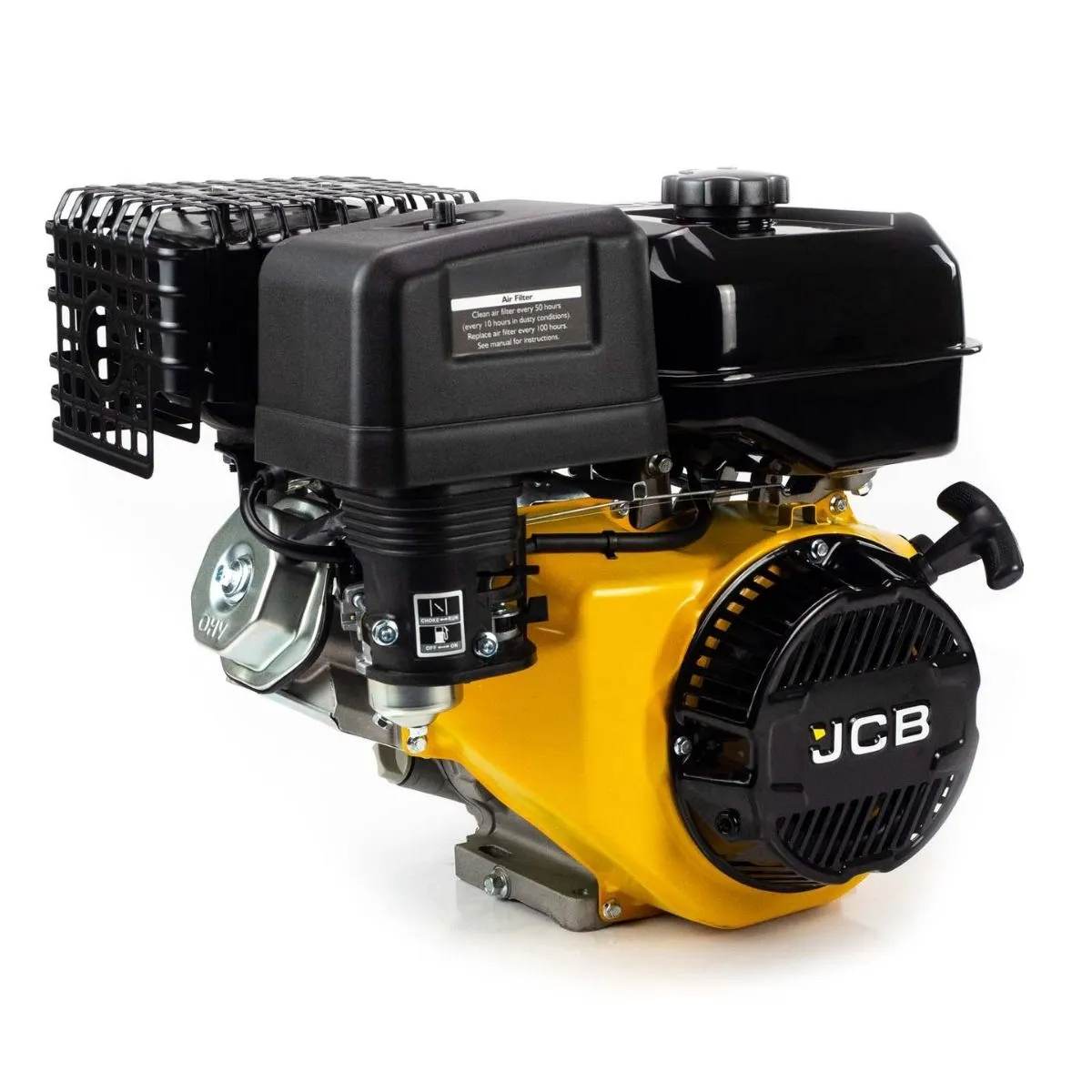

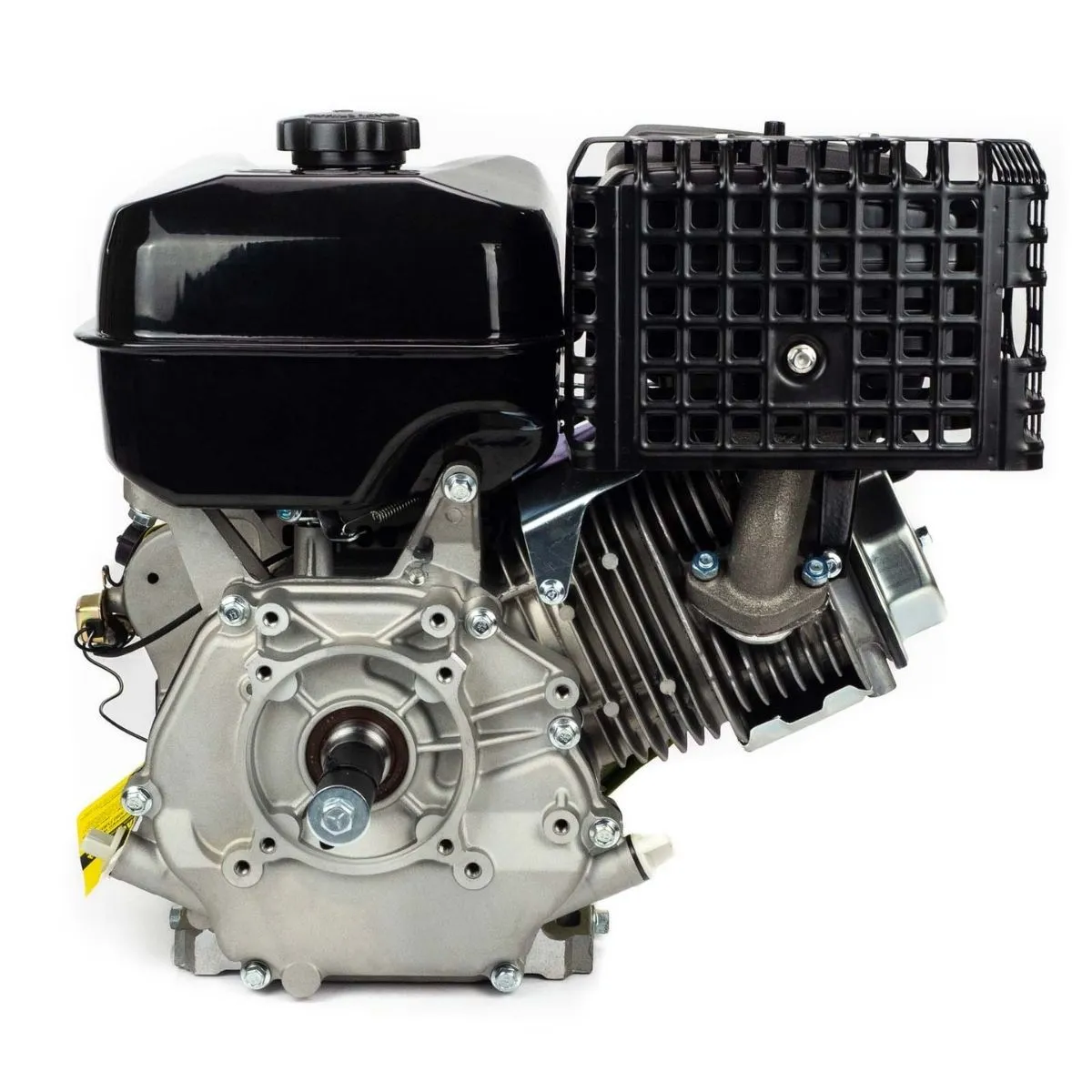

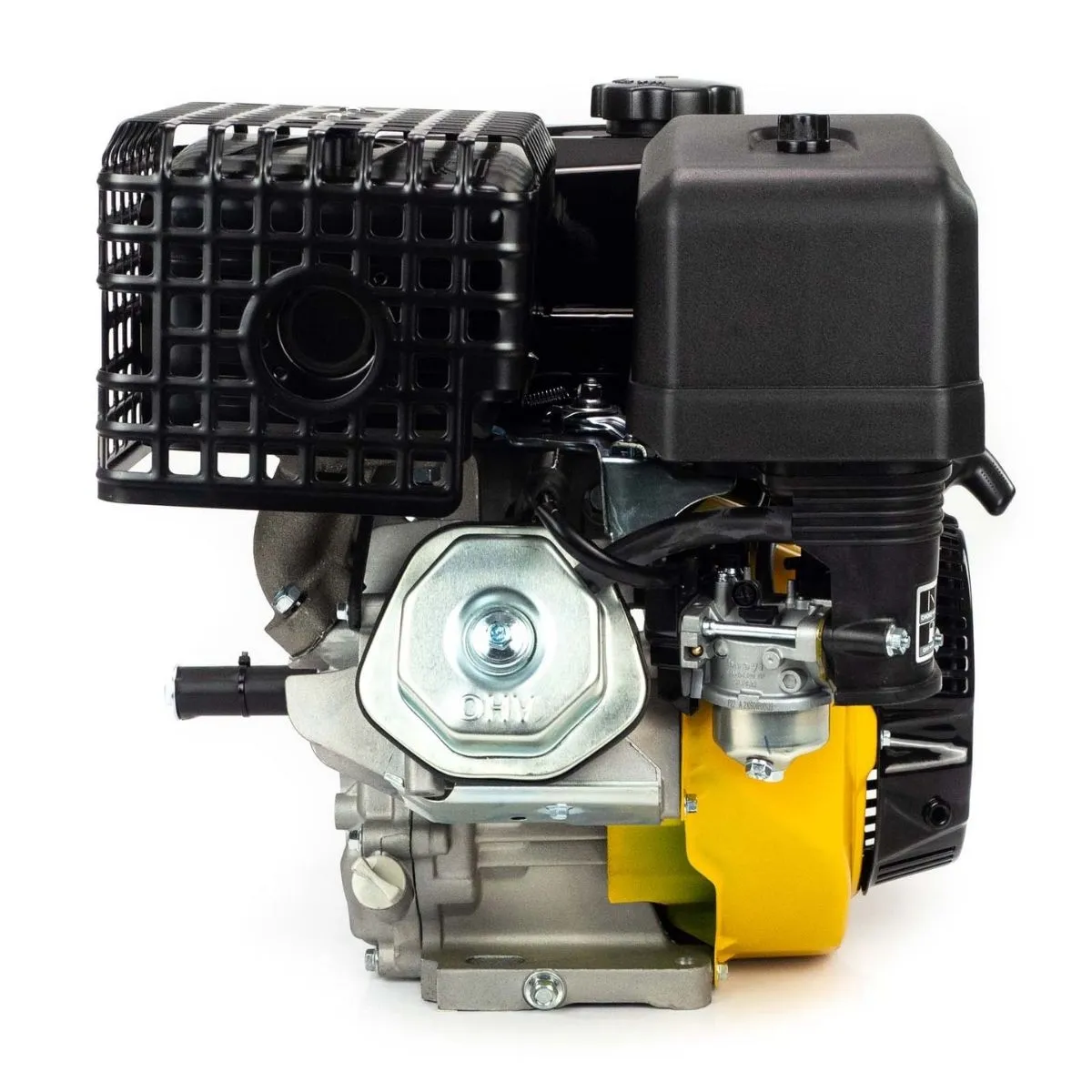

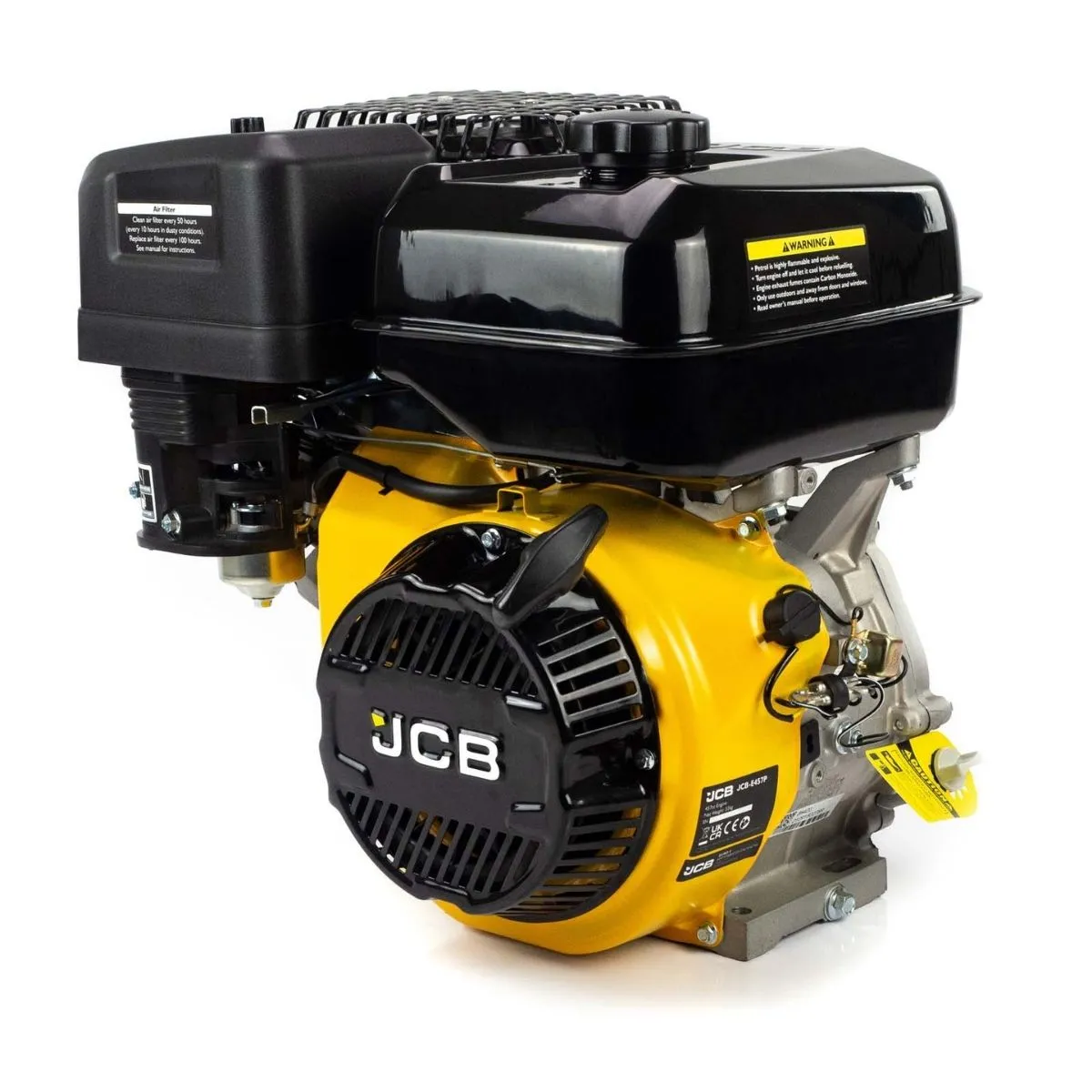

JCB E460P 4 Stroke 15HP Recoil Start Petrol Engine 457cc

The JCB-E460P replacement engine is a 457cc 15hp horizontal straight shaft petrol engine. 25.4mm shaft (1 inch). with keyway compatible for various applications including commercial. heavy-duty home use or industrial pressure washers. wood chippers. water pumps. tillers. grinders. compaction plates. other heavy-duty machinery or even used with karts (subject to small adjustments). The engine's easy recoil pull-start is aided by reliable CDI ignition for consistent and easy starting. The impressive design allows market leading 15hp of max power using a design which will retrofit all common and major brands engines as a direct replacement. ranging from 360cc to 4700cc models. Replacing a 224cc engine with the JCB 457cc engine. for example. offers you more power from almost the size and weight as other smaller engines. The engine is a reliable OHV design. offering a balance of compactness. higher torque. and an easily serviceable layout to maintain your engine over future years. 4-Stroke Euro V engine. with a 6.5L fuel tank

Features:

Large 457cc horizontal 25.4mm 1shaft petrol engine: Produces 15hp for industrial applications.
Suitable for a range of products: Use in most pressure washers. water pumps. tillers. compactor plates. wood chippers. Karts* and more.

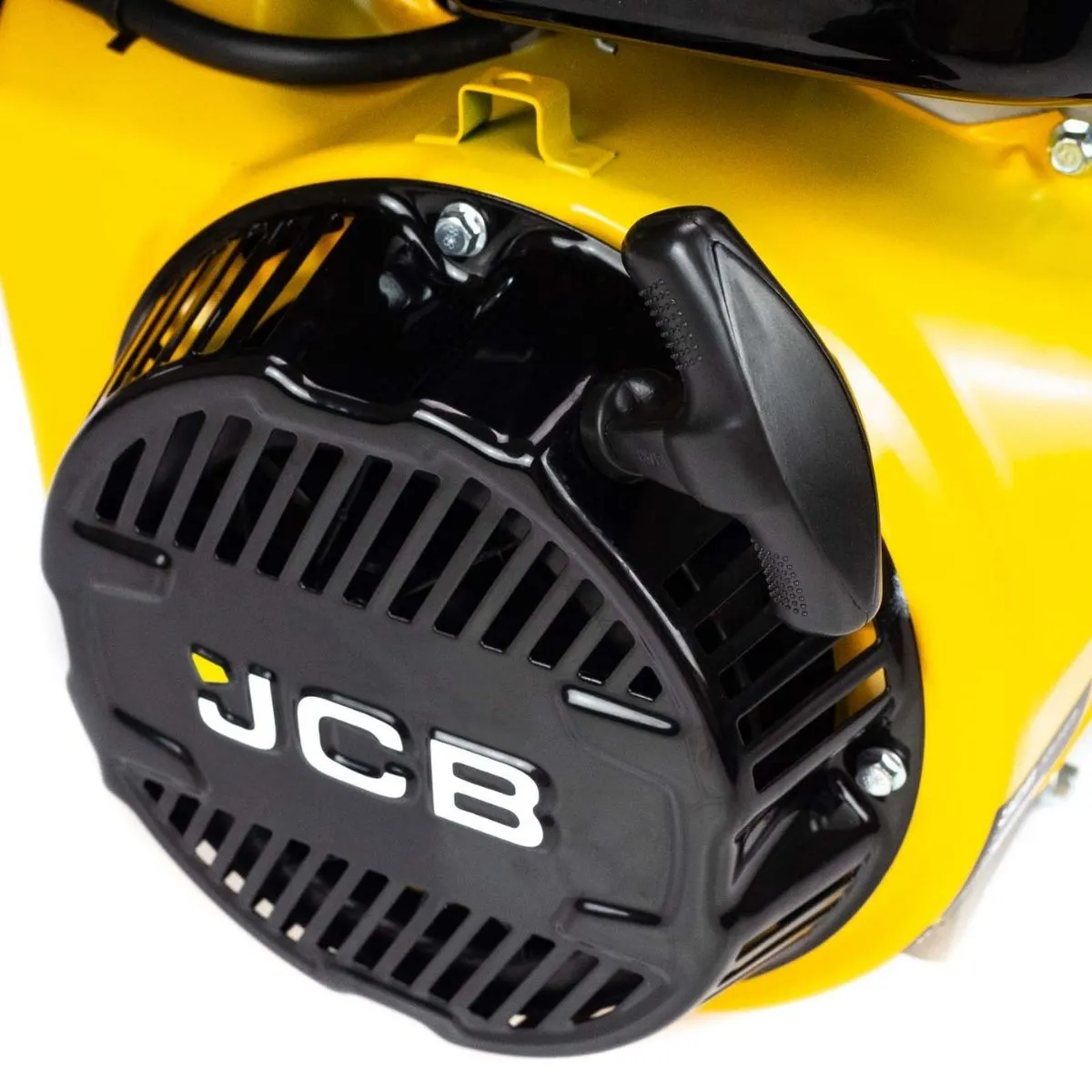

Simple-to-start engine: Easy recoil pull start with heavy-duty braid.
Reliable 4-stroke Engine.

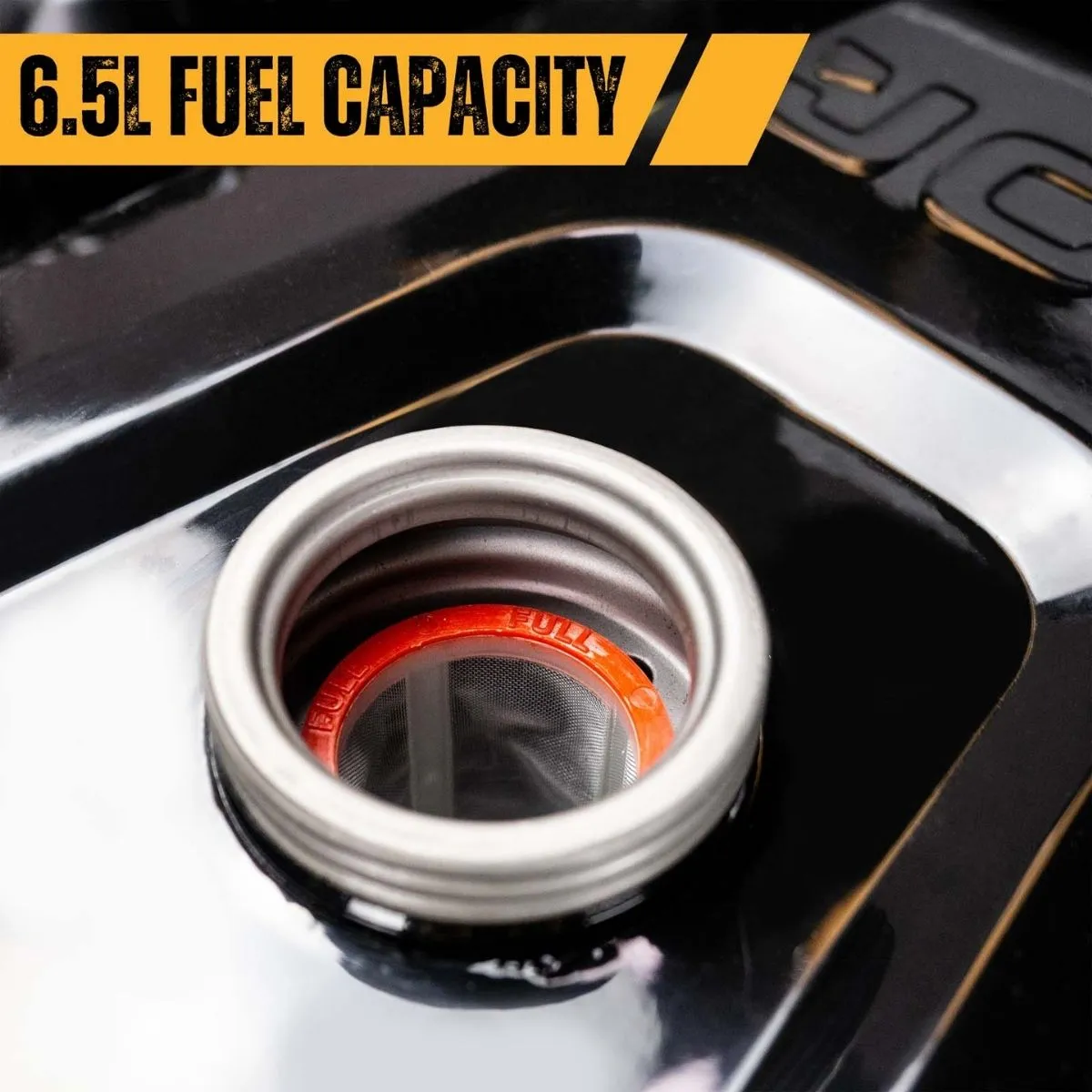

Large 6.5L fuel tank.
Easy to fit: Will retrofit most major and common brands ranging from 160cc to 220cc mounting).

Product Specification:

Part no: JCB-E460P
Barcode: 5059608313024
Start Method: Recoil
Shaft Type: Straight Horizontal Shaft. with Keyway
Shaft size (mm/in): 25.4 / 1
Fuel Type: Petrol
Fuel Capacity (L): 6.5
Impeller Type: PP
Engine Oil: SAE30 / 15W40
Engine Oil Capacity (ml): 1100
Low Oil Shutdown: Yes
Run Time @ 50% Load (hr): 2.5
Engine Model: JCB-E460P
Engine Type: OHV
Engine Size (cc): 457
Ignition System: CDI
Bore x Stroke (mm): 92 x 69
Power (hp): 15
Speed (RPM): 3600
Gross Weight (kg): 35
Net Weight (kg): 23
Fully Assembled Dimensions (H x W x L) (mm): 460 x 420 x 480
Package Dimensions (H x W x L) (mm): 480 x 450 x 55
Product Type: Petrol Engine

Due to delivery restrictions we are only able to deliver this to UK Mainland addresses. Unfortunately if your delivery address includes the Scottish Highlands. Northern Ireland & The Isle of Wight then your order will get cancelled automatically.

**images for illustrative purposes only please refer to description and specification for full details of product**
