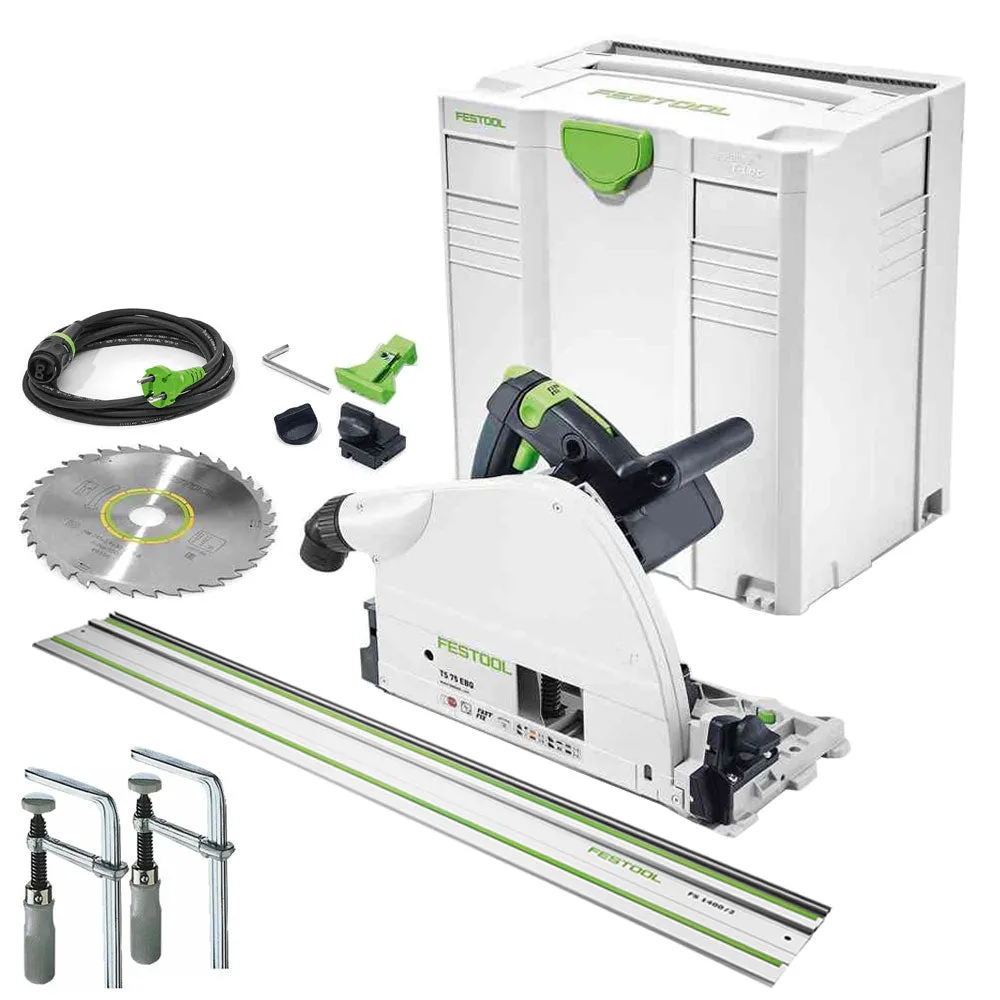

Festool TS 75 EBQ-Plus 230V GB Circular Plunge Cut Saw - 576114 With Guide Rail & Clamp
Features:
75 mm cutting depth for even more application possibilities
Attachable splinterguard for high-quality working results
FastFix: quick and easy saw blade changing and adapting to the working material
Quick-acting brake system for safe. convenient sawing
Safe and convenient with sliding clutch and KickbackStop
Spring-loaded spacer wedge for unhindered plunge cuts
Tool-less play setting on the guide rail
Areas of application:
Accurately cutting false floors to size
Cutting and machining conservatory profiles
Cutting cable ducts to length cleanly and easily
Cutting house doors to length using guide rail and circular saw
Cutting multilayered boards
Precise circular in materials up to 75 mm thick
Comes With:
1 x Guide Rail FS 1400/2
1 x Fastening Clamp 489570
Circular saw blade WOOD UNIVERSAL HW 210 x 2. 4 x 30 W36
Hex key. WAF 5
Plug it-power cable (4 m)
Set-back stop FS-RSP
Splinterguard
Systainer SYS3 M 437
Product Specification:
Part Number: 576114
Barcode: 4014549357965
Power consumption: 1 600 W
Idle engine speed: 1 350 - 4 400 min
Saw blade diameter: 210 mm
Angular range: 0 - 47
Cutting depth: 0 - 75 mm
Cutting depth 45: 55 mm
Dust extraction connection diameter: 27/36 mm
Cable length: 4 m
Sawing metal: A-weighted sound pressure level. LpA: 88 dB(A)
Sawing metal: Total vibration average. Ah: 3.5 m/s
Sawing metal: Uncertainty (vibration) K: 1.5 m/s
Sawing metal: A-weighted sound power level. LWA: 99 dB(A)
Sawing metal: Standards series EN: 62841
Sawing metal: Uncertainty (noise) K: 3 dB
Drive type: Mains
Sawing wood: Total vibration average. Ah: 3.4 m/s
Sawing wood: Standards series EN: 62841
Sawing wood: Uncertainty (noise) K: 3 dB
Sawing wood: Uncertainty (vibration) K: 1.5 m/s
Sawing wood: A-weighted sound pressure level. LpA: 88 dB(A)
Sawing wood: A-weighted sound power level. LWA: 99 dB(A)
