- The combination of a brushless EC-TEC motor
- Chip collection bag for dust-free work
- Cross-cuts up to 450 mm
- Mitre angles from -70 to 70
Festool CSC SYS 50 EBI-Basic 36V Brushless Table Saw Body Only 576820
Features:
Absolutely judder-free: Ball bearing-mounted slide for parallel and angled cuts with maximum precision
Compact and mobile: Can be transported with one hand in the practical Systainer format. Even lighter with the UG-CSC-SYS underframe.
Compatible: Fits together with the entire Festool Systainer system and bott vehicle equipment
Convenient: Four saw blade positions can be saved and selected via the digital display.
Dust-free: Chip collection bag for dust-free work. even without a mobile dust extractor
Extreme precision: The height and angle are electrically adjusted at the press of a button via the digital display accurate to within a tenth of a millimetre.

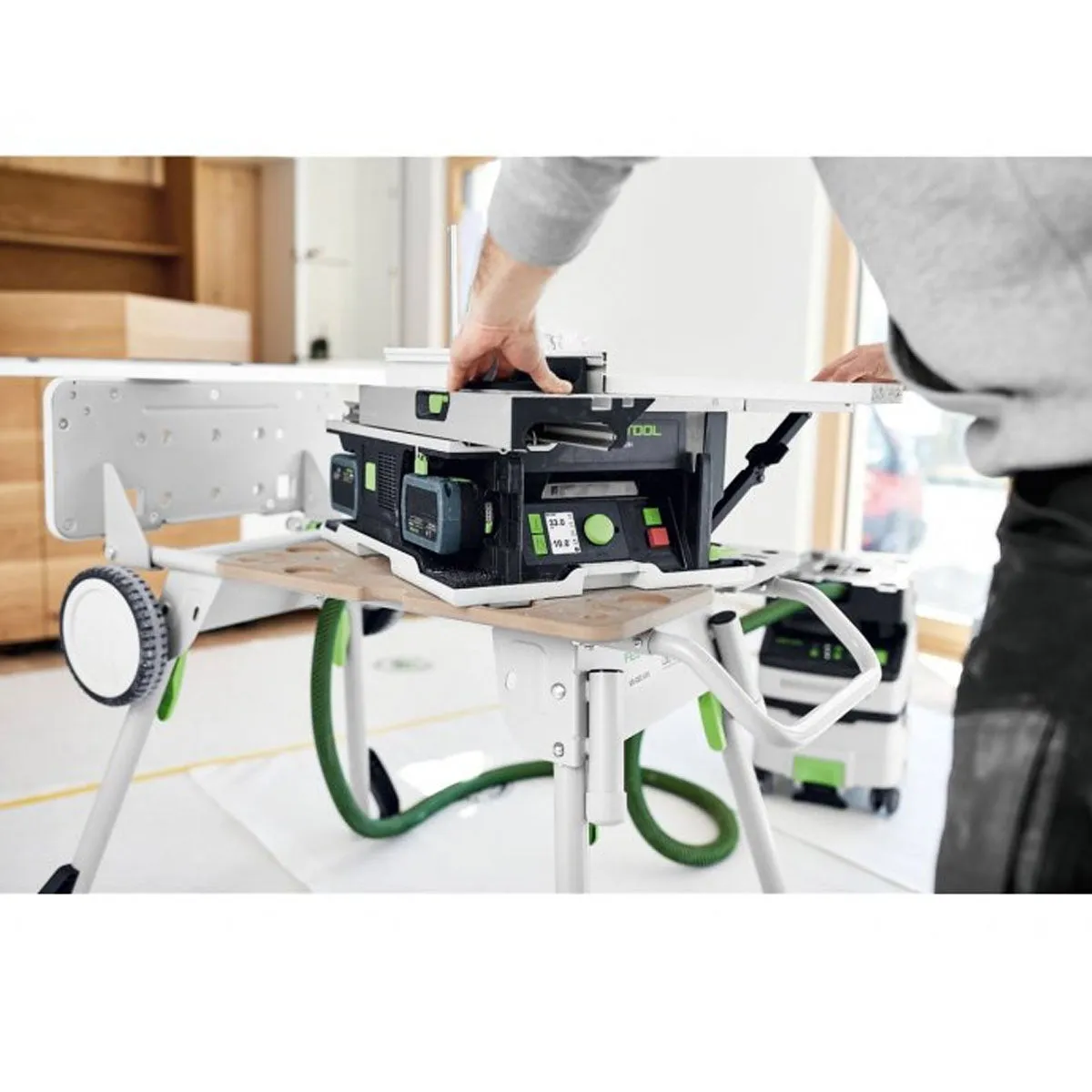

Flexible underframe: The UG-CSC-SYS underframe is the perfect solution for transport to the point of use and the ideal worktable in one
Healthy working with a system: Ideal also in combination with the Festool cordless extractors
Highly precise angle stop: The angle stop is optimally aligned and centrally clamped via a groove on the slide. For mitre angles between -70 and 70
Highly precise parallel side fence: Robust parallel side fence with double clamp (via just one clamp lever) for exact alignment and perfect cutting results.
Long-lasting: The brushless EC-TEC motor is long-lasting. robust and maintenance-free

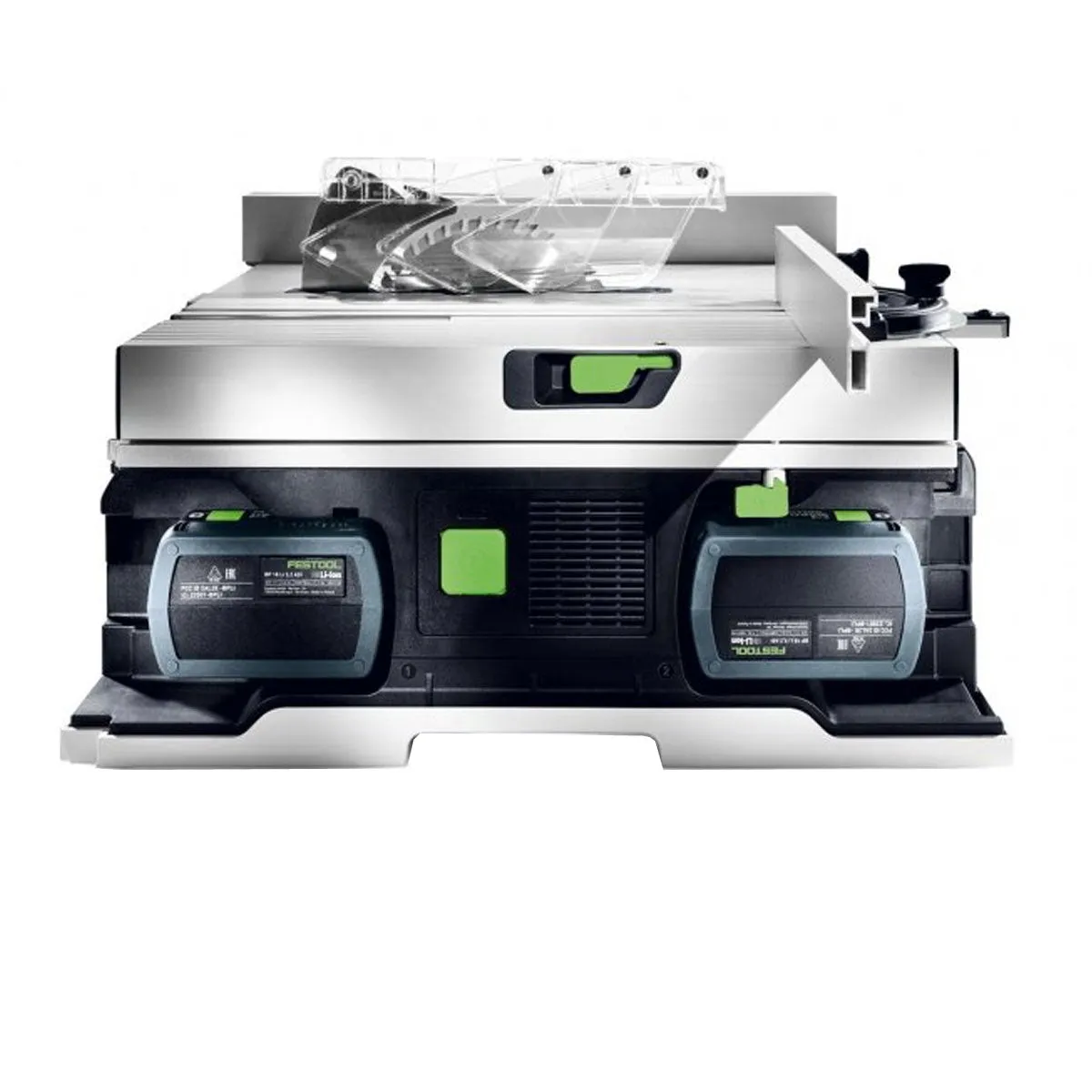

Long-lasting: The combination of a brushless EC-TEC motor and a dual battery system with two 18 V battery packs (from 4.0 Ah) ensures a long operating performance
Powerful: The brushless EC-TEC motor with high speeds of 6800 rpm guarantees fast sawing progress and perfect cutting results
Practical: At a cutting height of up to 35 mm. through to angled cuts right down to -10; ideal for undercutting infill panels.
Reproduce cuts easily: The height and angle (mm and inches) are set parallax-free via the digital display. i.e. more accurately than any visual judgement. Reproducible cuts are ensured.
Versatile: Parallel cuts up to 280 mm; cross cut width of up to 450 mm. Angled cuts from -2 to 47.
Work appropriately for the material: With saw blades for every material; speeds appropriate for the material can be preselected via the digital display

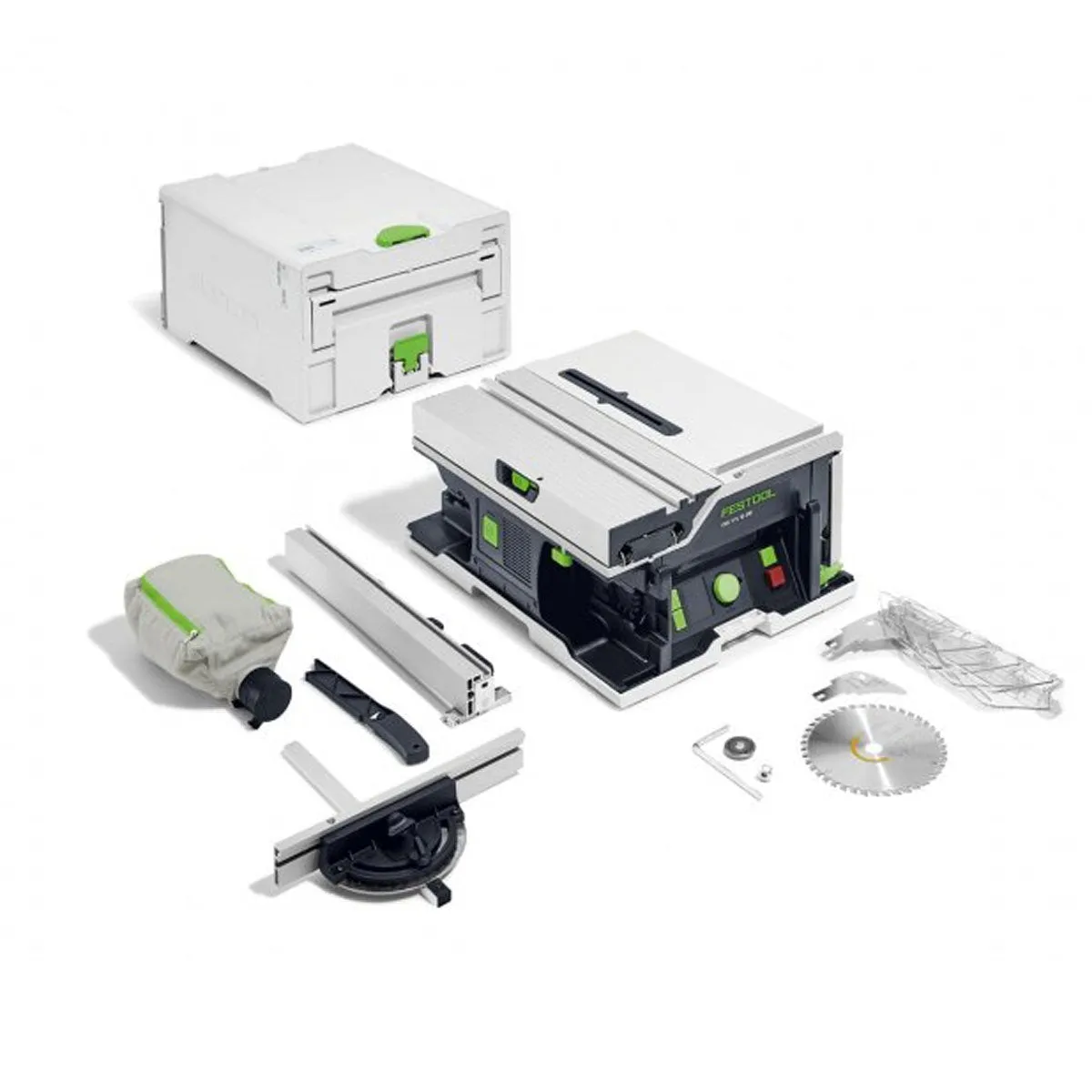

Comes With:
WOOD FINE CUT HW 168 x 1.8 x 20 WD42 circular saw blade
Chip collection sack
Hex key. WAF 6
Parallel side fence
Preset profile setting rail
Splitting wedge for concealed cuts
Splitting wedge with protective hood
Workpiece holder
Product Specification:
Part Number: 576820
Barcode: 4014549381694
Battery voltage: 2 x 18 V
Idle engine speed: 4 500 6 800 min
Saw blade location hole: 20 mm
Inclination angle: -10 - 47
Cutting height 0: 0 - 48 mm
Cutting height 45: 0 - 34 mm
Cutting height -10: 21 - 32 mm
Mitre angle: 0 - 70
Parallel cut width: 280 mm
Tabletop height: 280 mm
Dimensions (L x W x H): 512 x 396 x 296 mm
Dust extraction connection diameter: 27 mm
Drive type: Battery
Product weight without accessories: 15 kg
Transport weight incl. accessories: 23.5 kg
Sawing: A-weighted sound power level. LWA: 98 dB(A)
Sawing: Uncertainty (noise) K: 3 dB
Sawing: A-weighted sound pressure level. LpA: 85 dB(A)
**images for illustrative purposes only please refer to description and specification for full details of product**
