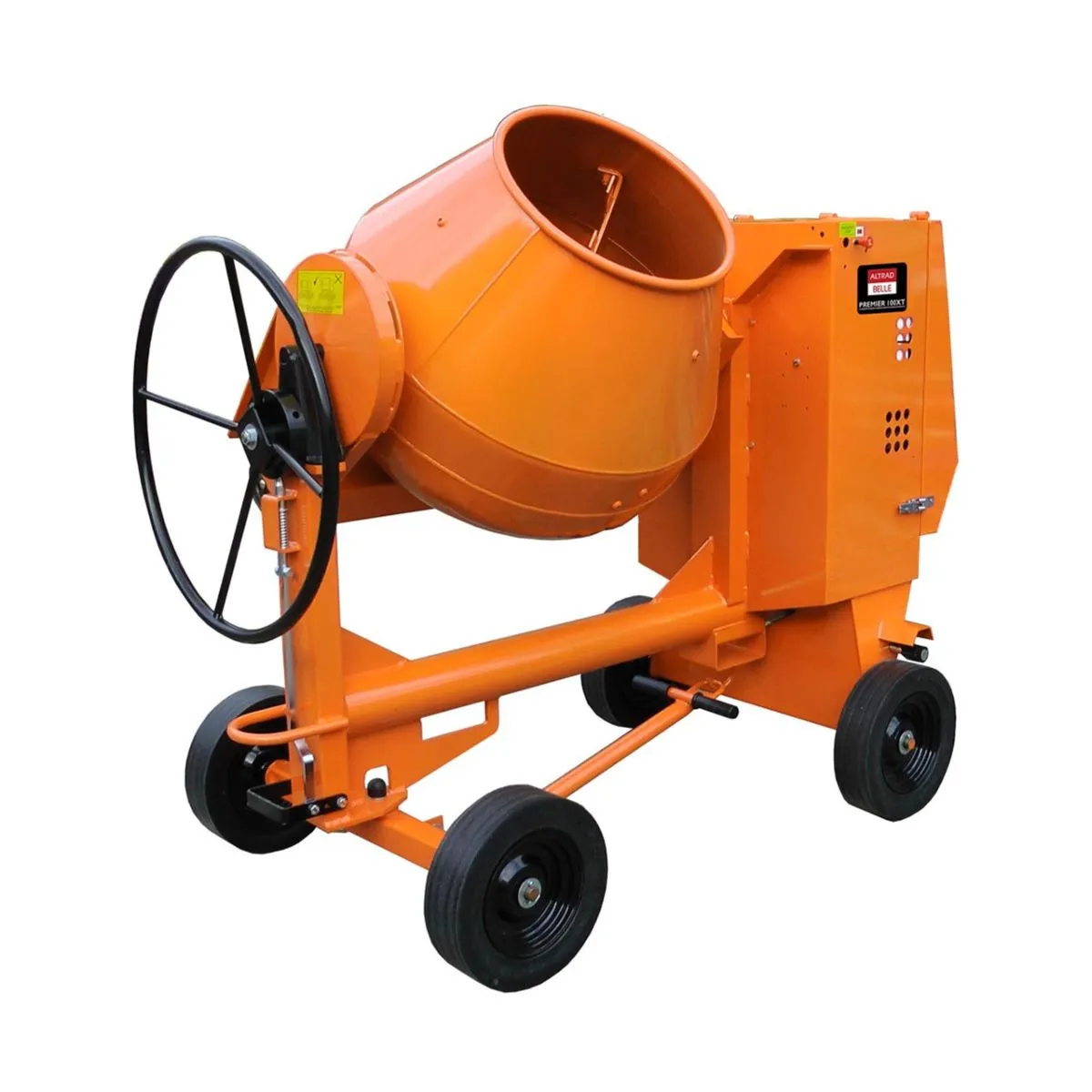

Belle PM20V Premier XT Yanmar Diesel Site Mixer Electric Start for Reliable Performance

Advanced range of high performance. heavy duty. mobile site mixers. The XT range adds even more durability to the proven Premier mixers. To match site requirements four drum sizes are available to give different batch mixing capacities. All sizes share the same advantages built in as standard. Ideal for use with the Altrad Belle Warrior Wheelbarrow..

Features:

Heavy-Duty Chassis: Built to endure the toughest site conditions with extra robustness.
Reinforced Drum: Rigid construction to prevent distortion even under heavy use.
Durable Wheels: Designed to perform reliably in challenging environments.
Stage 5 Compliant Yanmar L48 Diesel Engine: Features an electric start for dependable operation.
Safety and Control: Foot-operated tip-lock and large tip wheel ensure secure handling of large mixes.
Enhanced Mixing Performance: 'Quick Mix' paddles are replaceable and bolted in for efficient mixing.
Easy Cleaning: Tubular chassis design allows for simple maintenance and cleaning.
Wider Profile Wheels: Provides extra stability for improved performance.
Low-Maintenance Gearbox: Sealed. high-specification gearbox minimizes maintenance needs.
Secure Engine Compartment: Lockable. stay-cool compartment with lid down operation for added security.
Compact Wheelbase: Extra short wheelbase on 100XT and 150XT models fits easily on compact vehicle tail lifts.

Product Specification:

Part no: PM20V
Barcode: 5031403030207
Model: 100XT Yanmar Diesel Electric Start
Engine Power: 3.4 Hp- 2.5 kW
Drum Volume: 250 ltrs
Mixing Output: 110 ltrs
Drum Speed: 19 rpm
Paddle type: Gated Paddle Design
Weight: 335 kg
Noise level: 99 dB(A)

**images for illustrative purposes only please refer to description and specification for full details of product**
